TITLE : TOPPLING OF A CONTAINER INTO LIQUID

BY : CHAM Development Team Q H Zhang & J Z Wu
FOR : Software Development

This case demonstrates the particle-tracking procedure applied to a free-surface problem.

The input file is supplied as GENTRA library case 722.

DETAILS :

Pictures show how the water surface penetrates into the container

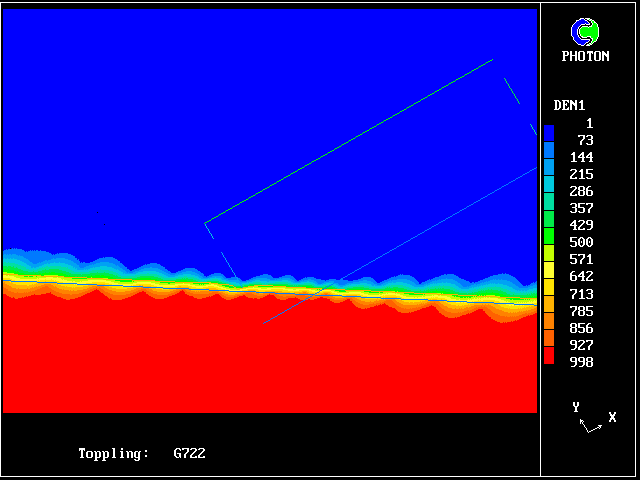

The water surface after 0.25 seconds

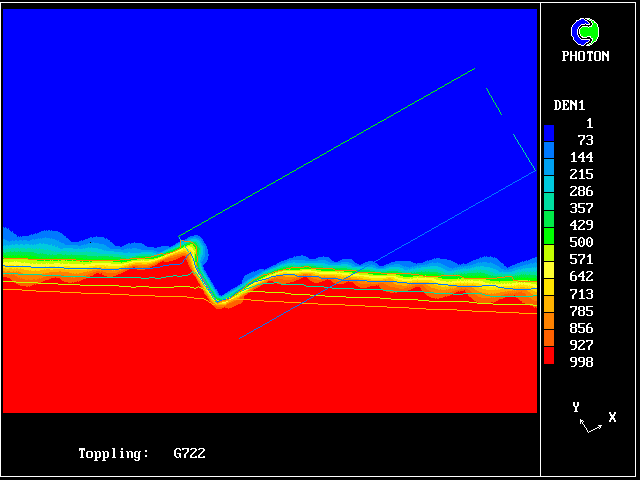

The water surface after 1.25 seconds

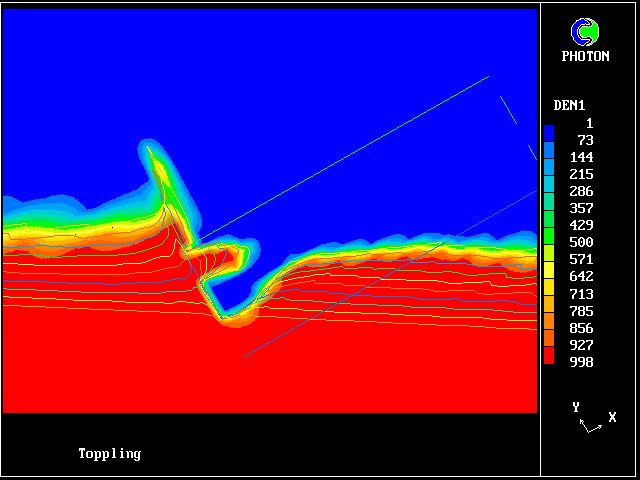

The water surface after 2.50 seconds

The water surface after 3.75 seconds
