BY : CHAM Development Team
DATE : 2023
FOR : Demonstration case
PHOENICS version: HOTBOX-2022
Details:
The case deals with the conjugate heat transfer for the forced turbulent flow of the cooling air over a solid block representing PCB.
Two planar sources are attached to the north and south faces of PCB to model surface mounted packages.

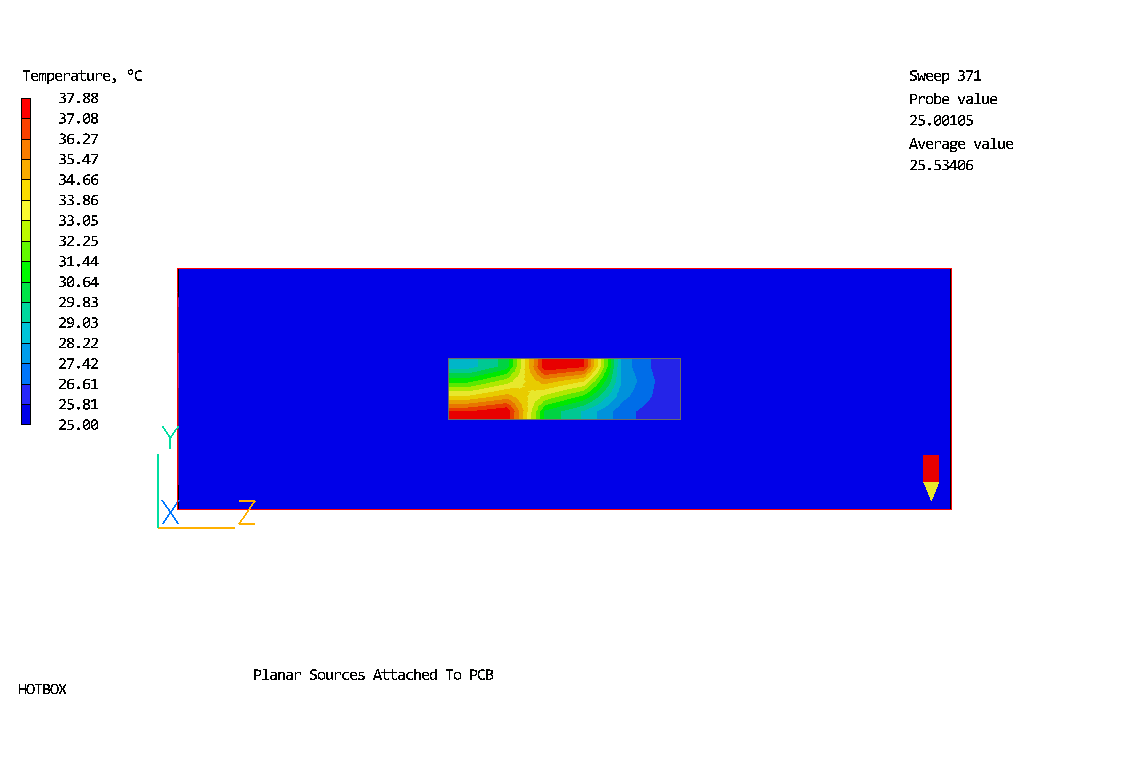

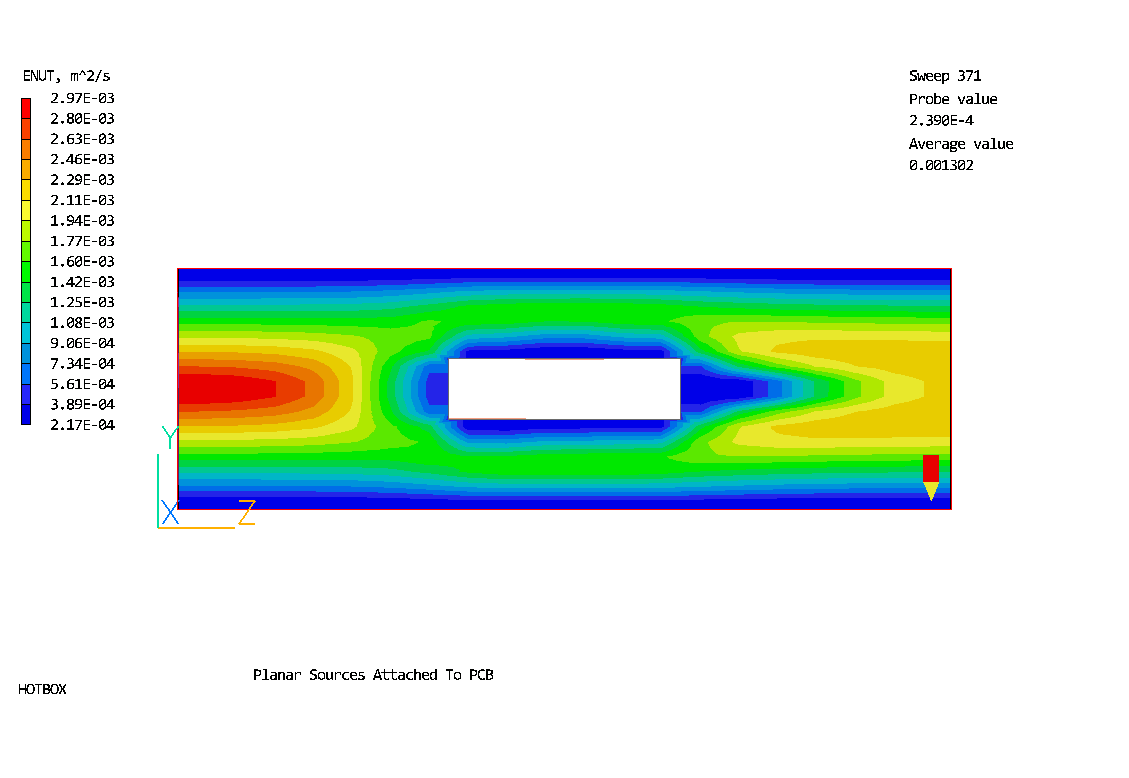

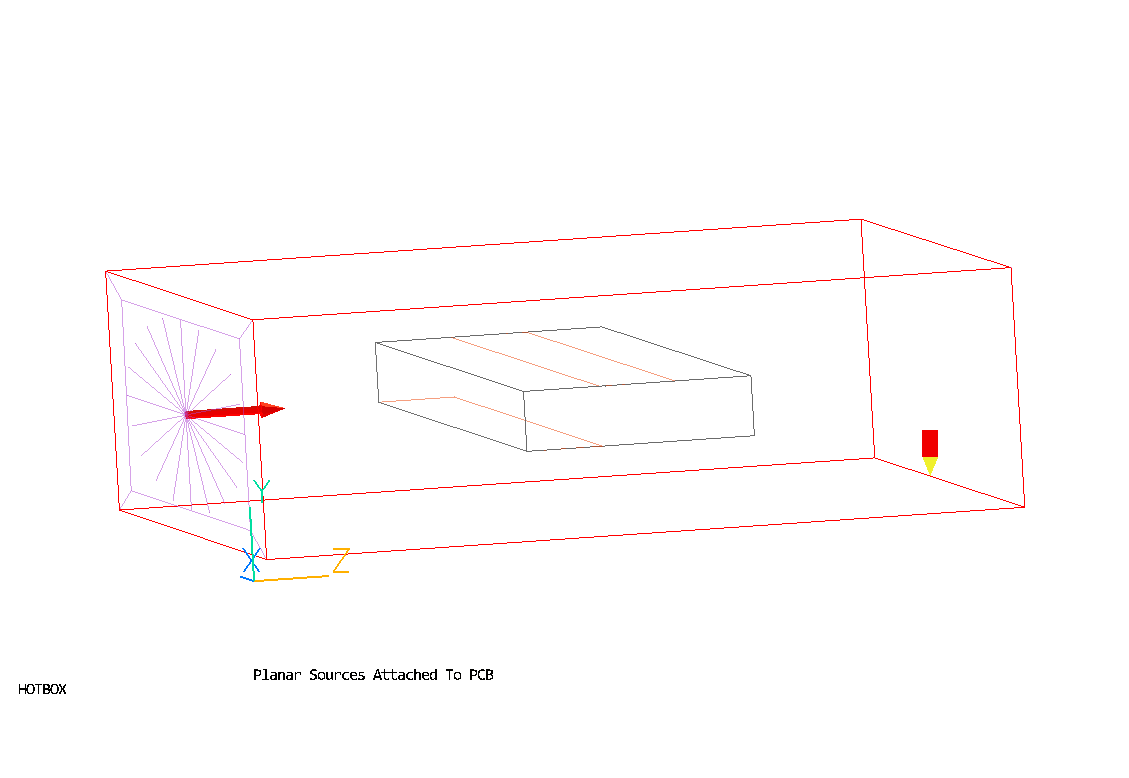

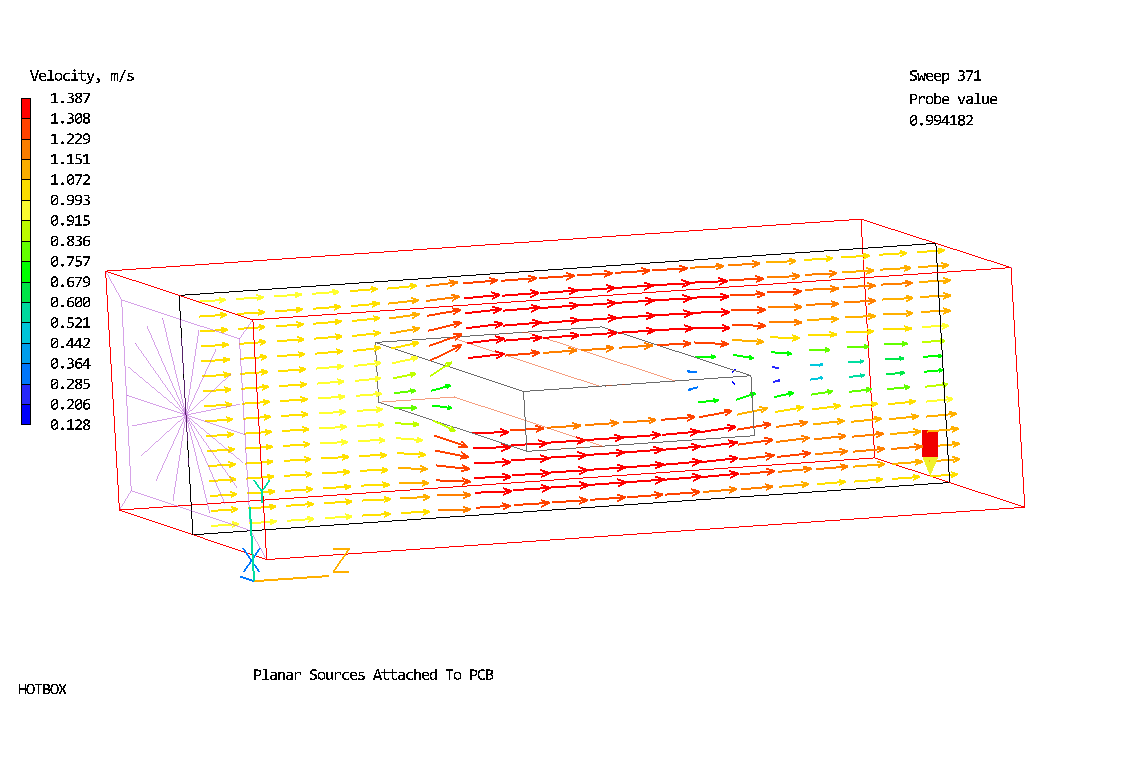

Pictures are as follows:
