TITLE : Heat and air flow distribution in a system rack
BY : CHAM Development Team
DATE : 2023
FOR : Demonstration case
PHOENICS version: HOTBOX-2022
DETAILS :
This case represents a real-life electronic system rack. The model is composed
of the number of fully blocked and porous plates, solid elements, 5 apertures
and fan; fan is a part of the equipment within the rack. Turbulence model
used is LVEL model. System components generate heat and the simulation
is used to find the maximum temperature.

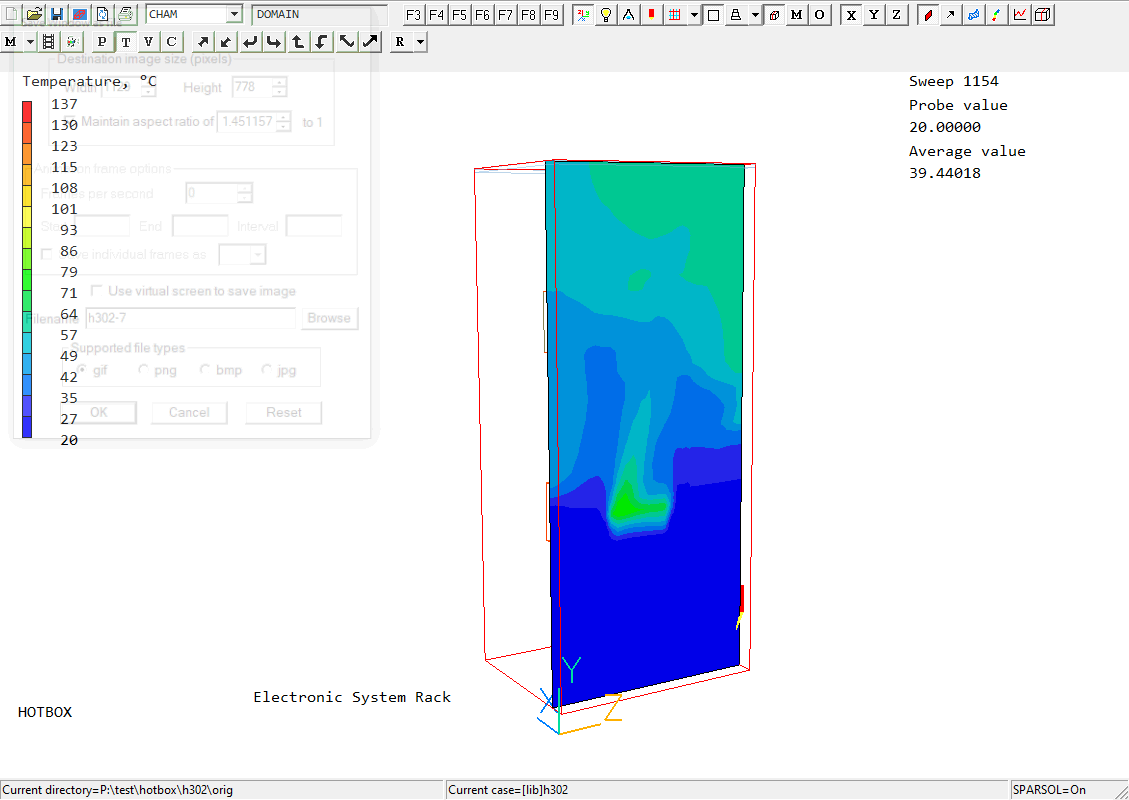

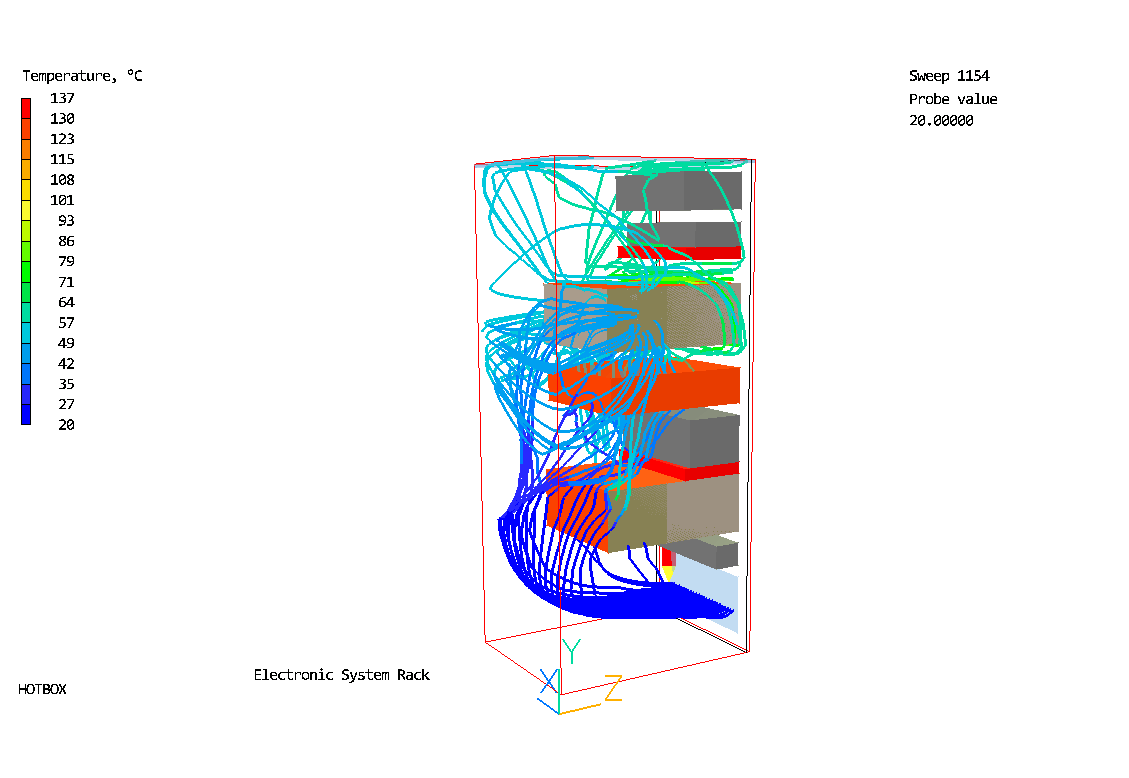

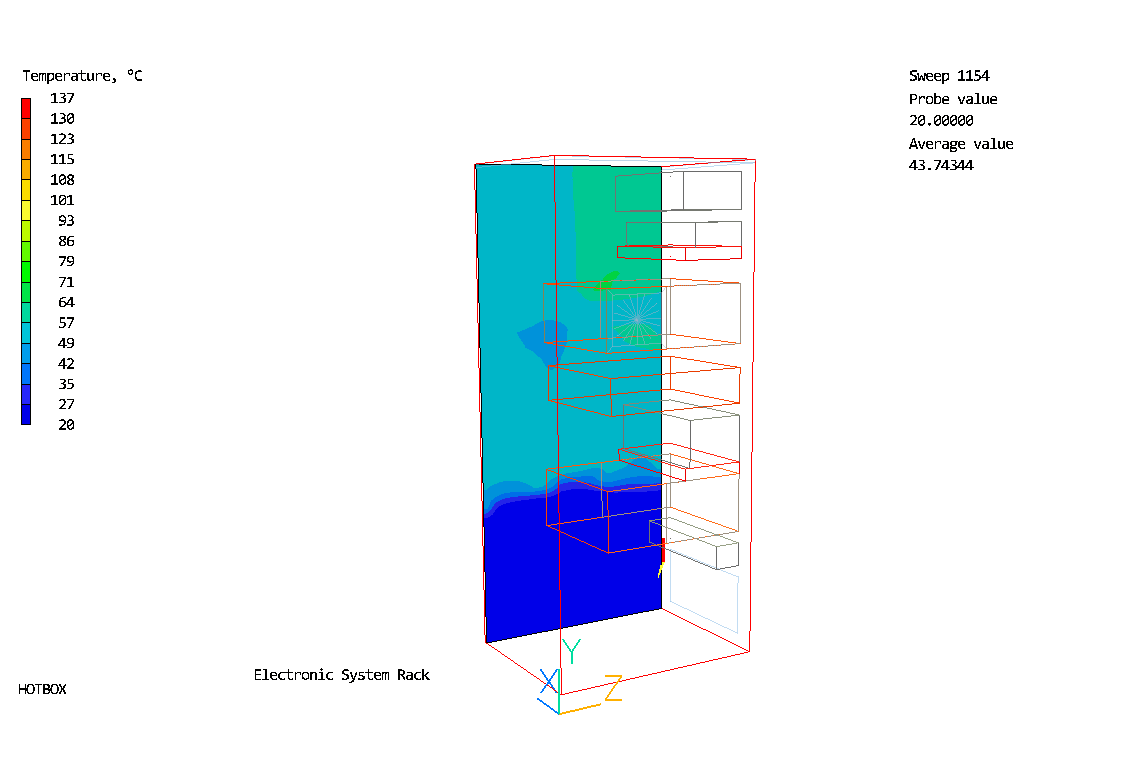

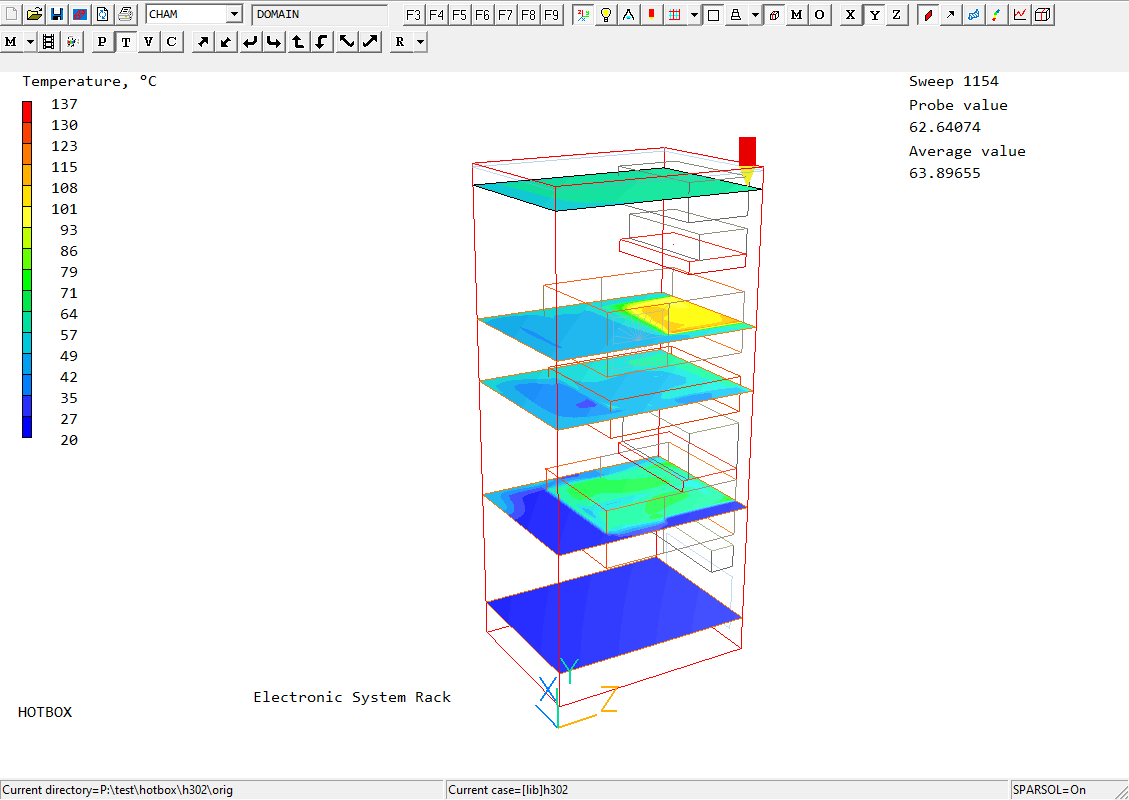

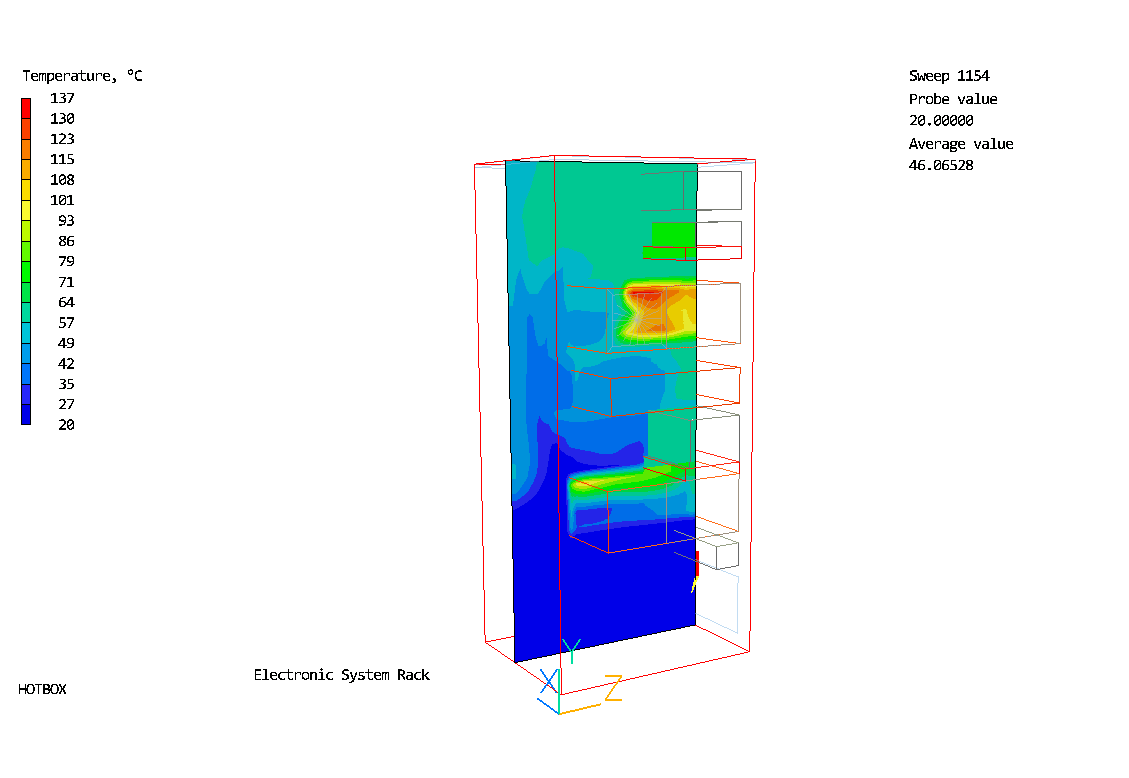

Pictures are as follows :
-

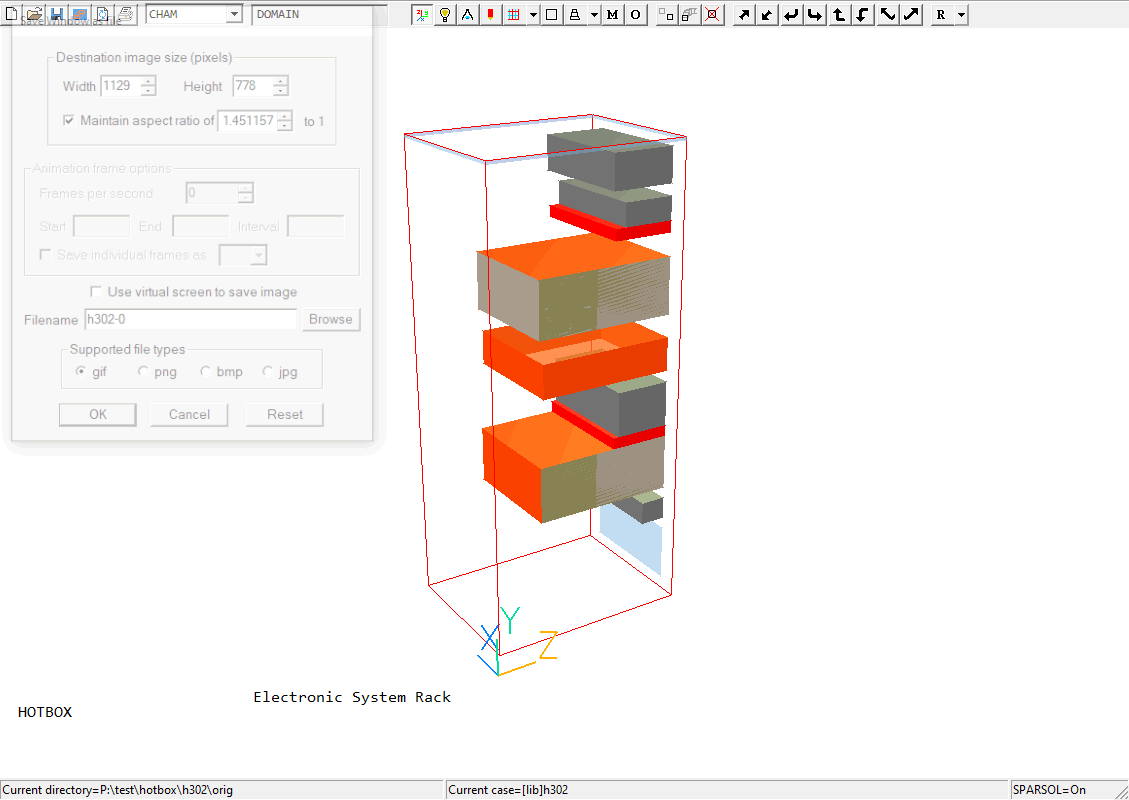

System features
-

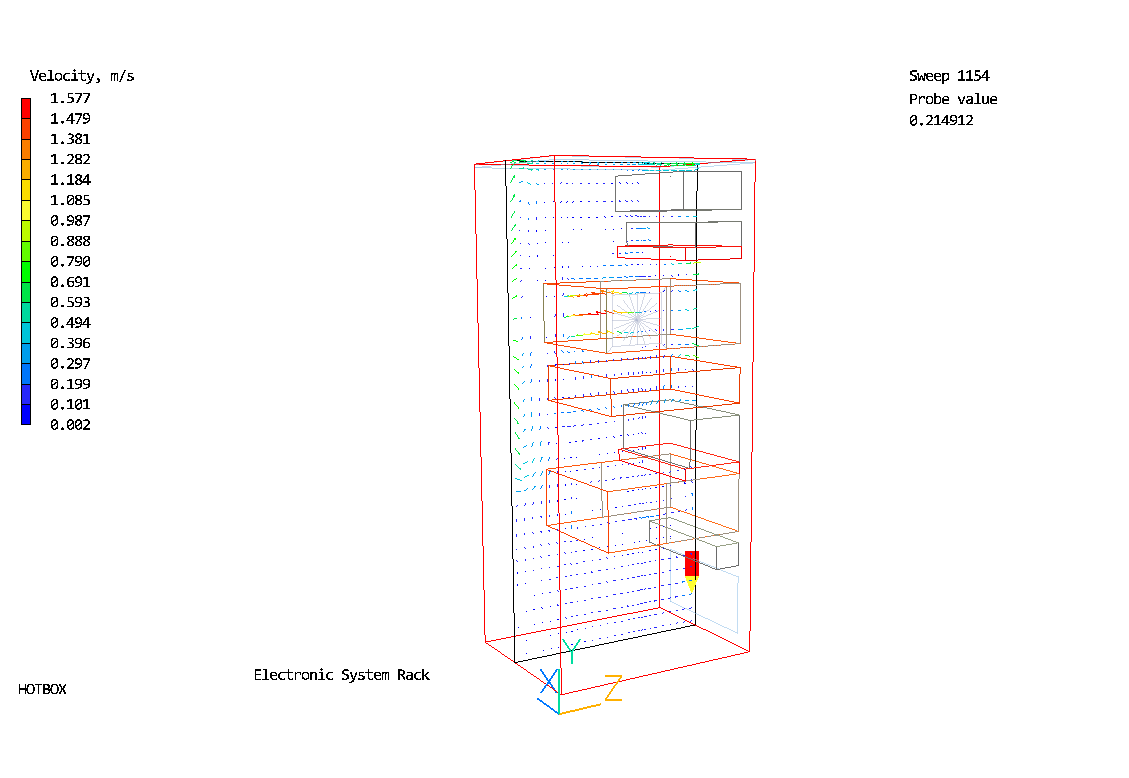

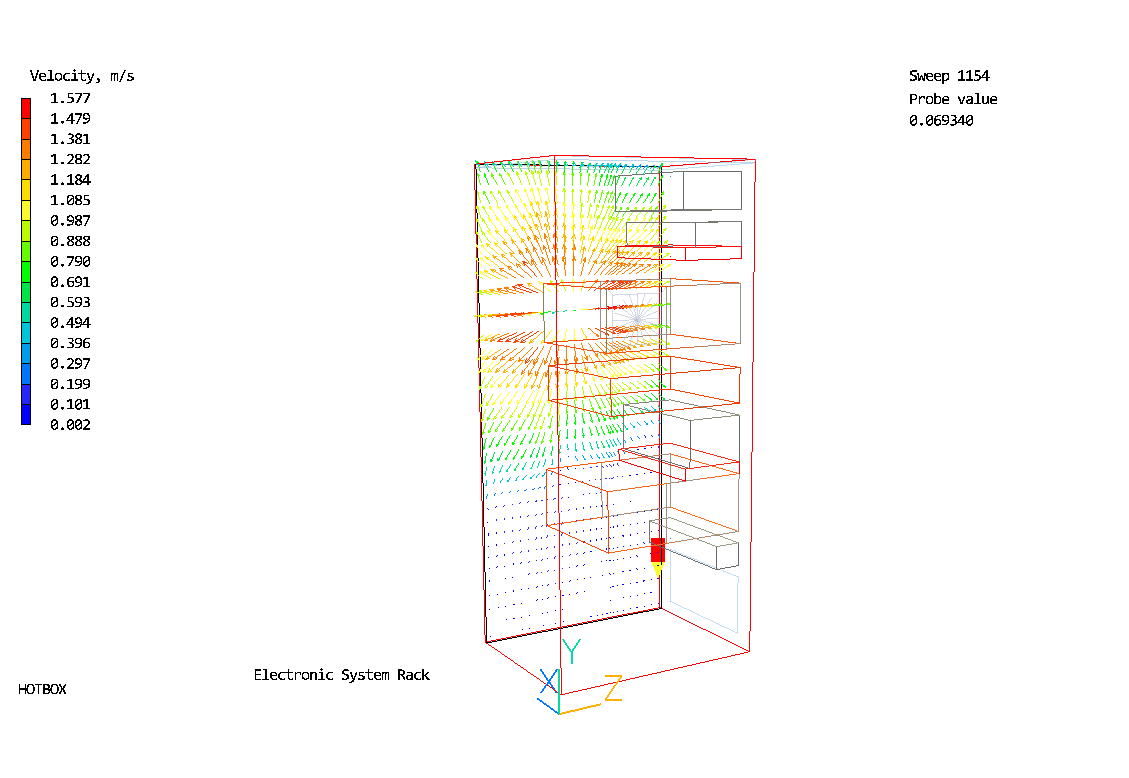

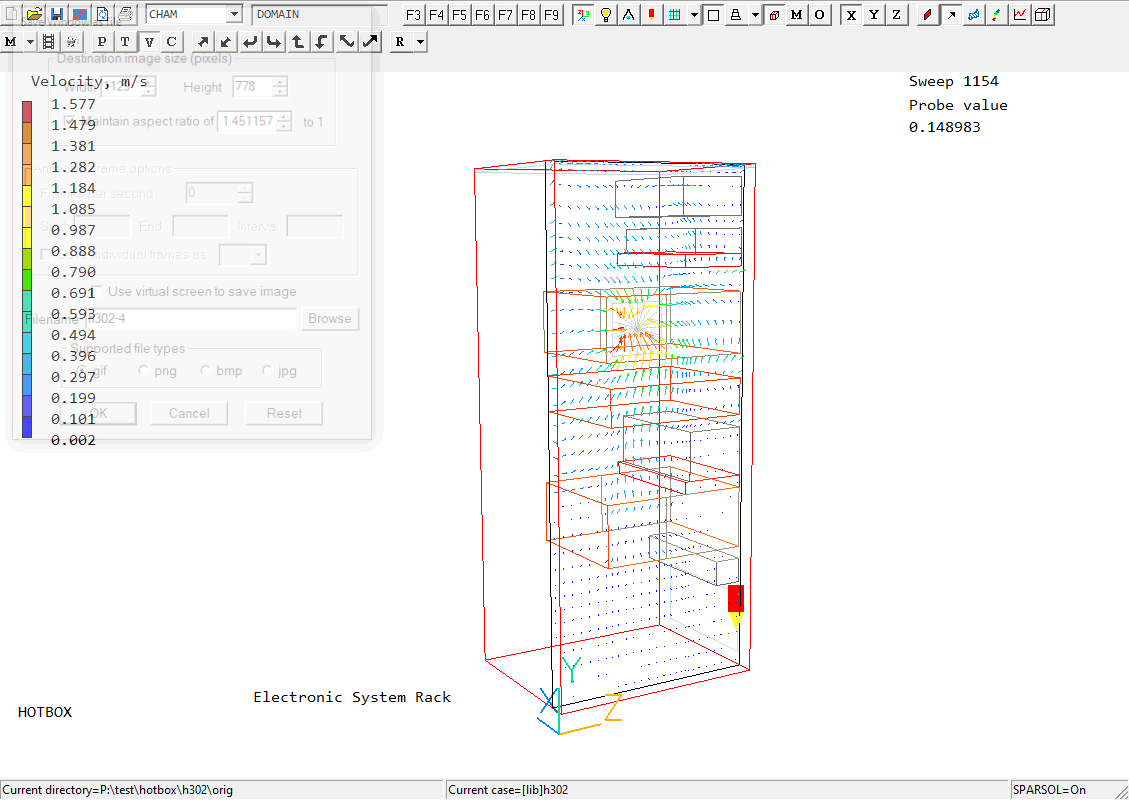

Air velocity vectors
