TITLE : Fine-grid embedding for simulation of AFT module
BY : CHAM Development Team - Sergei Zhubrin
DATE : 1999
FOR : Demonstration case
PHOENICS version: HOTBOX-99
DETAILS :
This case shows the use of Fine-Grid Embedding feature to provide higher
calculation resolution in the regions requiring special attention.

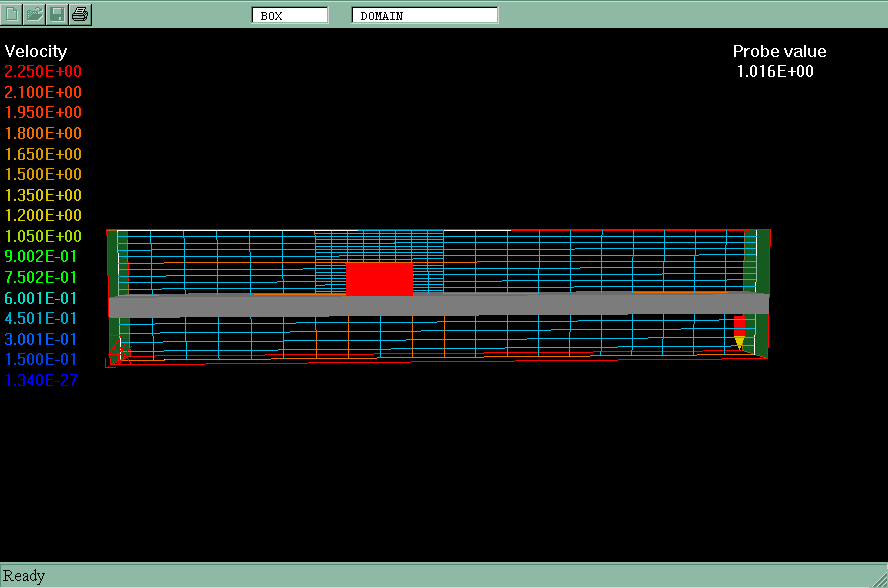

Computational grid has been made twice as fine around the heated component
mounted on conductive PCB in a counter-current Air Flow Through module.

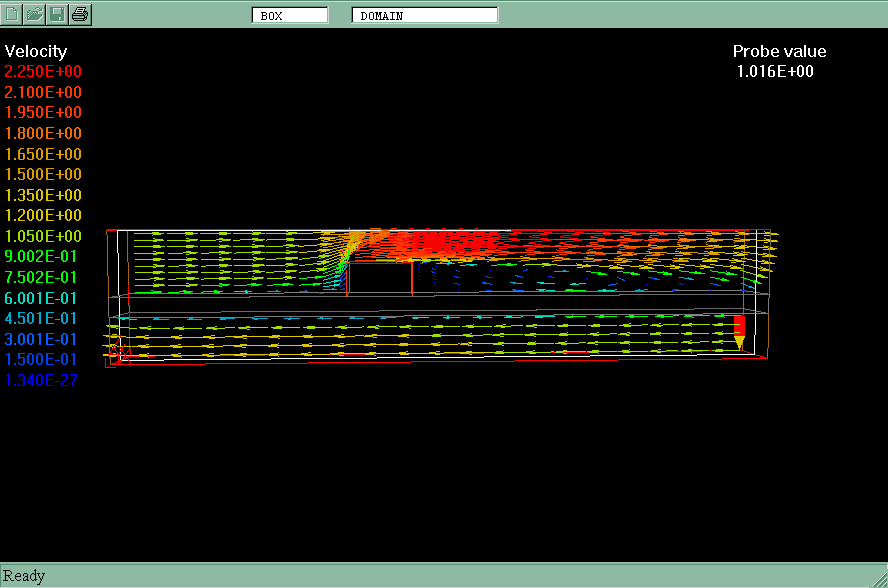

Pictures are as follows :
