TITLE : Counter-current AFT module with heat sink

BY : CHAM Development Team - Sergei Zhubrin

DATE : 1999

FOR : Demonstration case

PHOENICS version: HOTBOX-99

DETAILS :

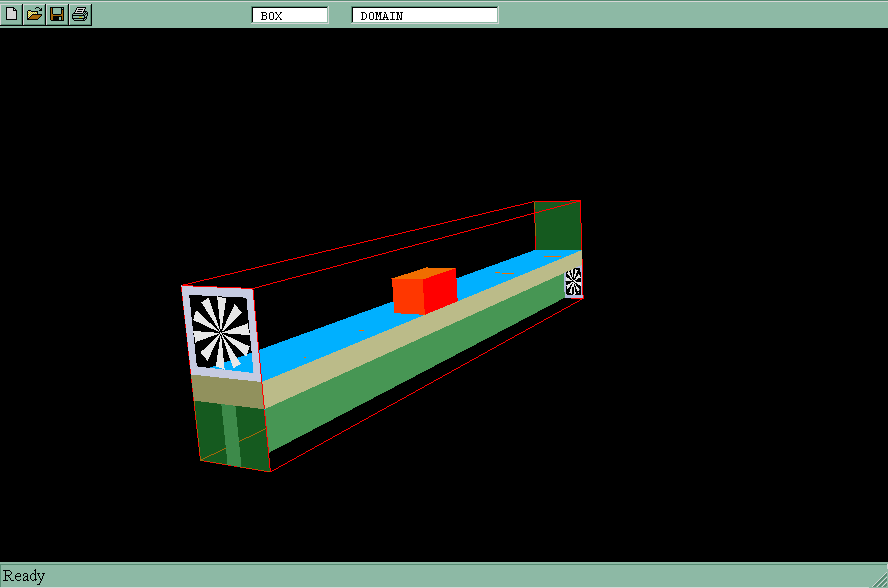

> The case represents counter-current Air Flow Through module. The one-fin heat sink is attached underneath of the PCB with PQFP component mounted on it. The assembly is cooled down by forced air streams going in opposite directions. The heat generated by the electronic component is transfered into the streams both by convection and by conduction through the board and heat sink.

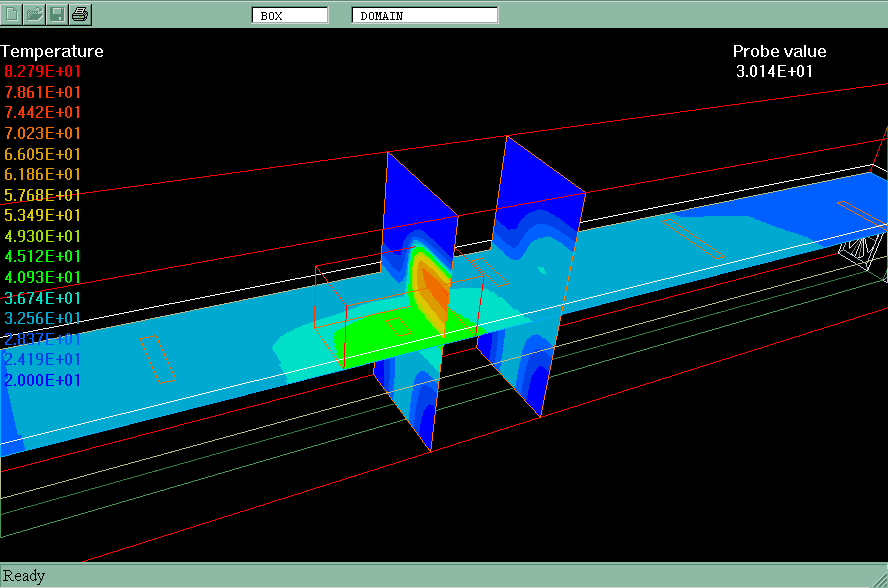

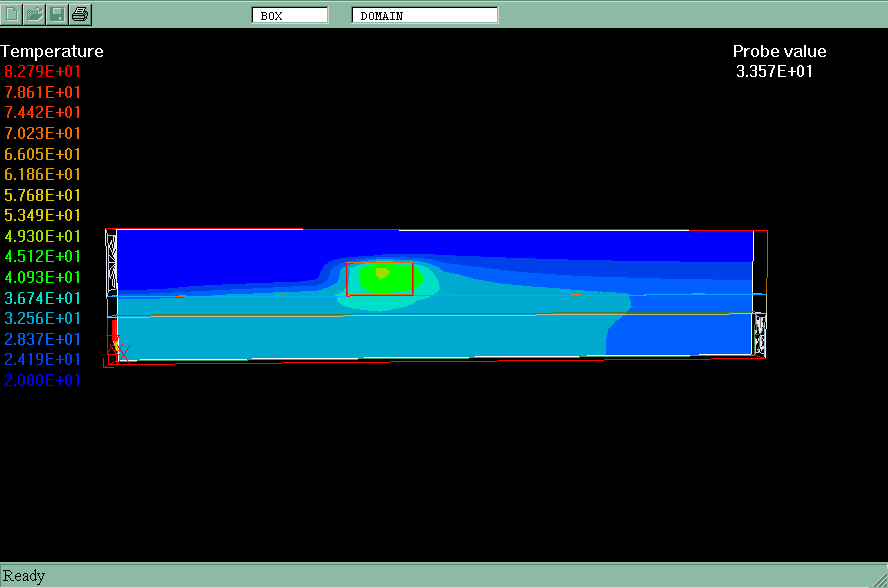

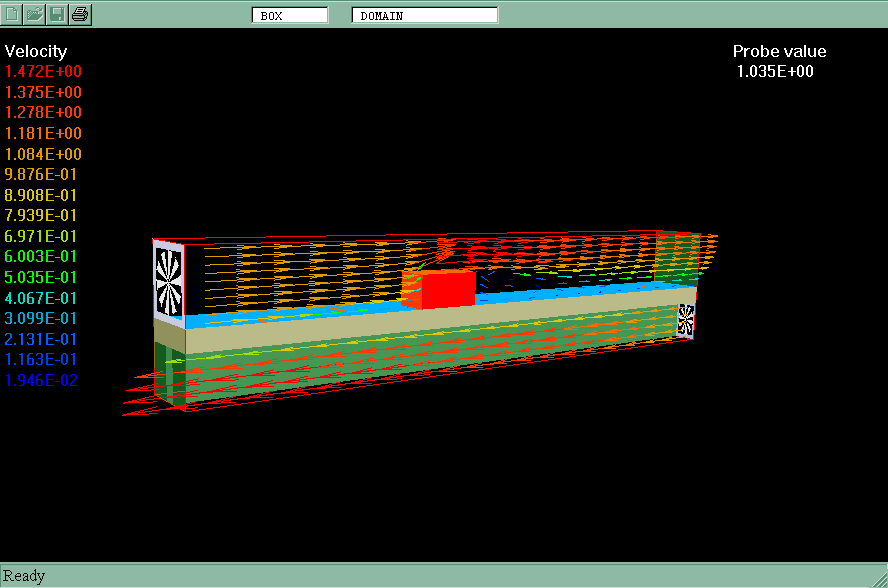

Pictures are as follows :
