TITLE : Natural cooling of PQFP array.

DATE : 1999 FOR : Demonstration case

PHOENICS version: HOTBOX-99

DETAILS :

The problem is to calculate the air flow field and temperature distributions in the air and solids with special attention to the temperature at the junctions of PQFP and PCB.

Pictures are as follows :

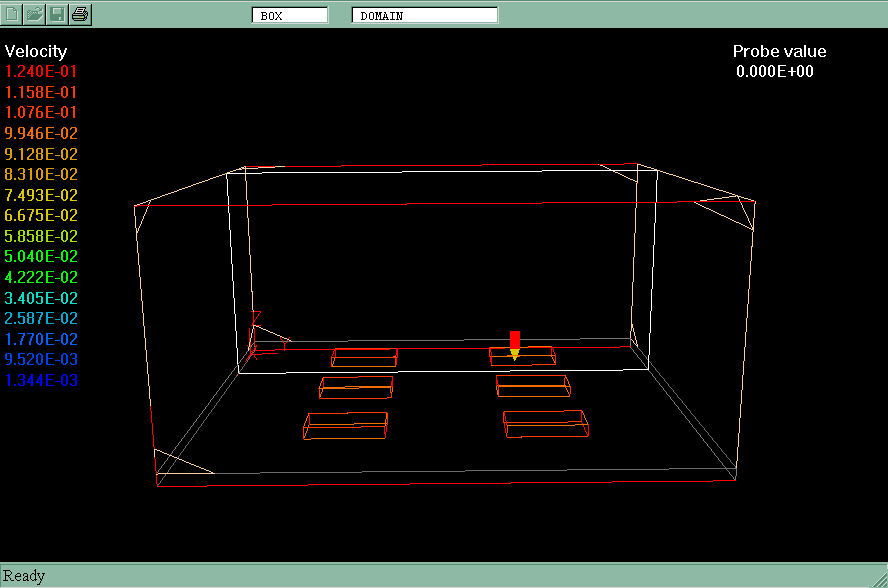

• Geometry under consideration.

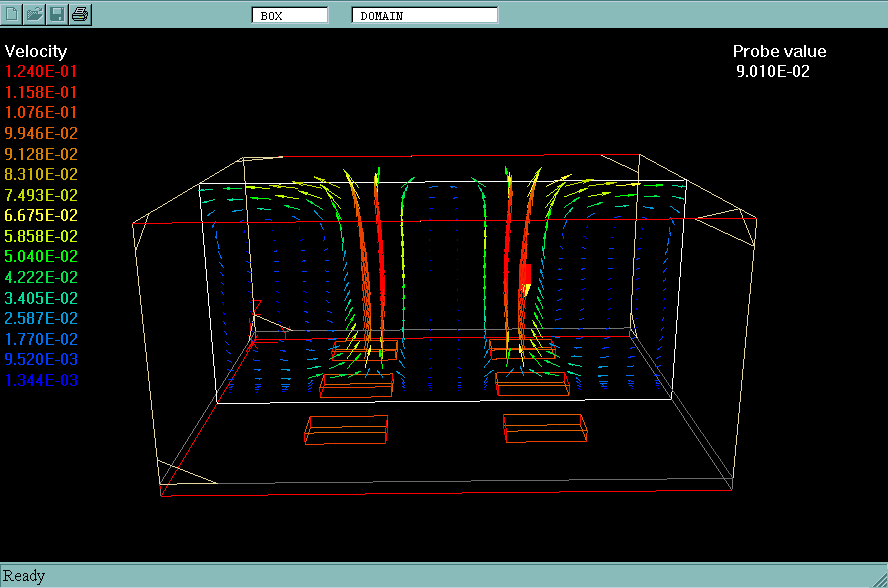

• Velocity vectors.

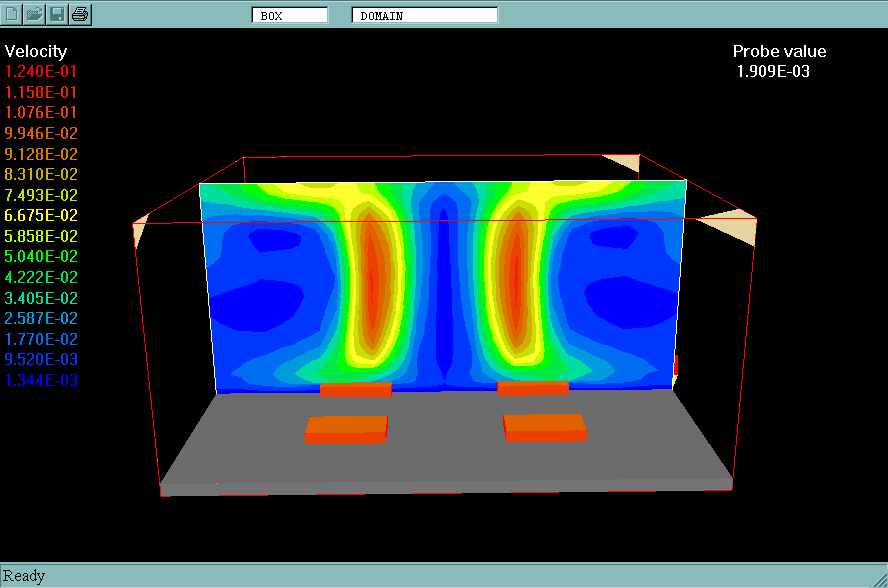

• Velocity magnitude contours.

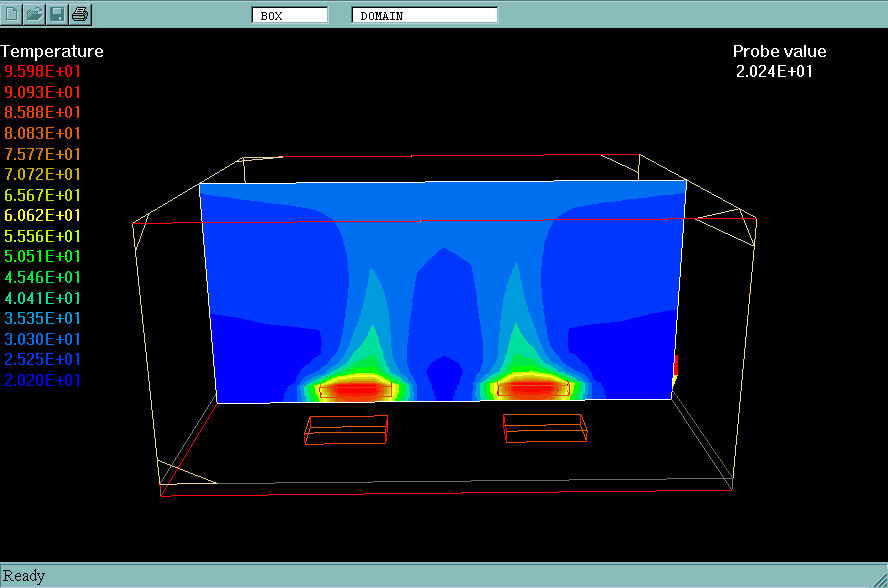

• Temperature plume.
• Junction temperatures.
