TITLE : SOLID DISTORTED BY THERMAL STRESSES
BY : S.V.Zhubrin
FOR : Technical-discussion meeting
DATE : July 1997
PHOENICS Version : 3.1
DETAILS :
- Two-Dimensional steady flow over non-uniformly heated
solid block with heavy external loads.
- Simultaneous solution for fluid flow, conjugate heat transfer
and displacement/thermal stresses in solid.
- PLANT BFC feature is used to visualise the solid body shape
distorted by displacements.
The pictures represent the velocity and displacement fields by way
of vectors, and the temperature and stresses by way of colour
contours.

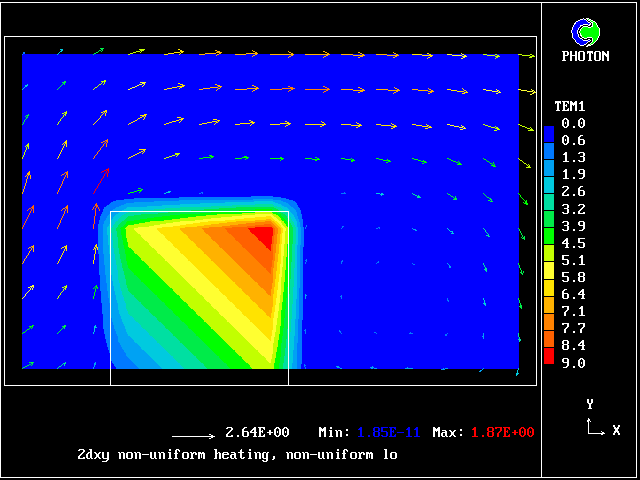

Velocity vectors and temperature in solid block

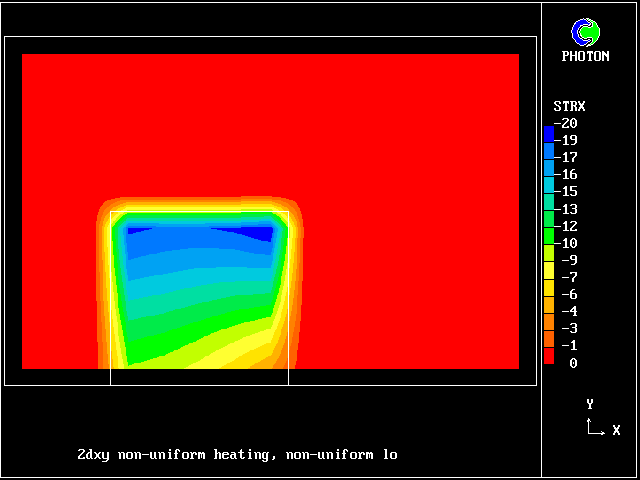

X- direction normal stresses

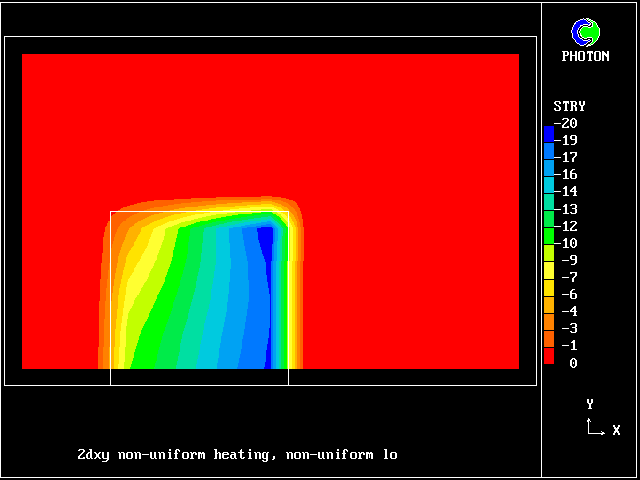

Y- direction normal stresses

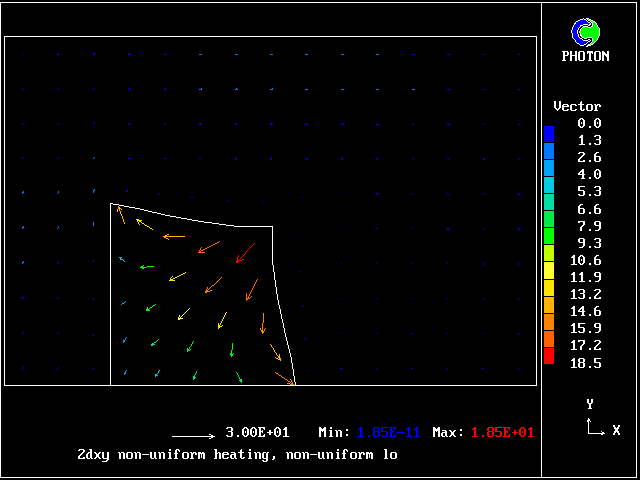

Solid block shape distorted by displacements( Not in scale )
