TITLE : ROTATING-MIRROR-DRIVEN FLOW IN AN ENCLOSURE

    BY               : S.V.ZHUBRIN
    FOR              : Technical-discussion meeting
    DATE             : August 1997
    PHOENICS Version : 3.1

SIMULATION FEATURES :

NOTES :

  • Steady case describing the movement of a viscous fluid caused by inclined flat and rotating cylindrical surfaces

    Pictures as follows : A series of PHOENICS PHOTON plots describing the fluid movement as velocity vectors and pressure contours.

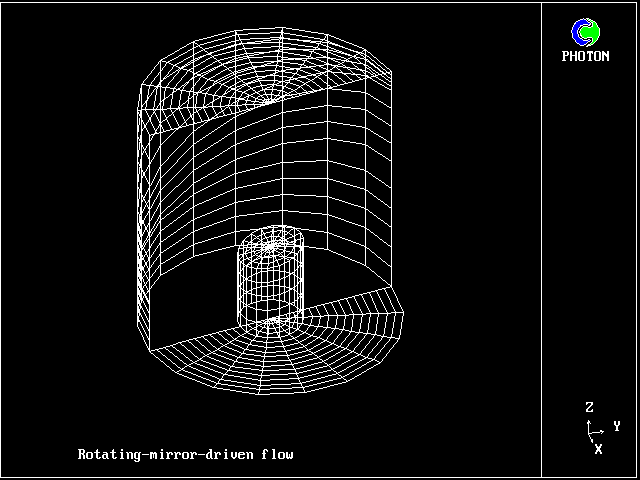

    PLANT/BFC generated grid

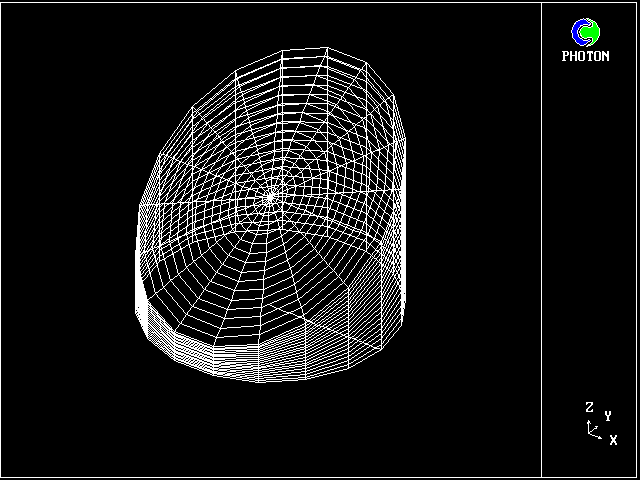

    Magnified view of the mirror geometry

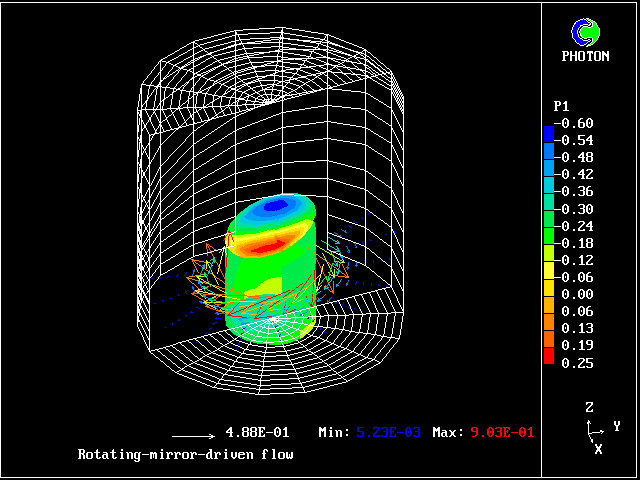

    Velocity vectors and surface pressure contours

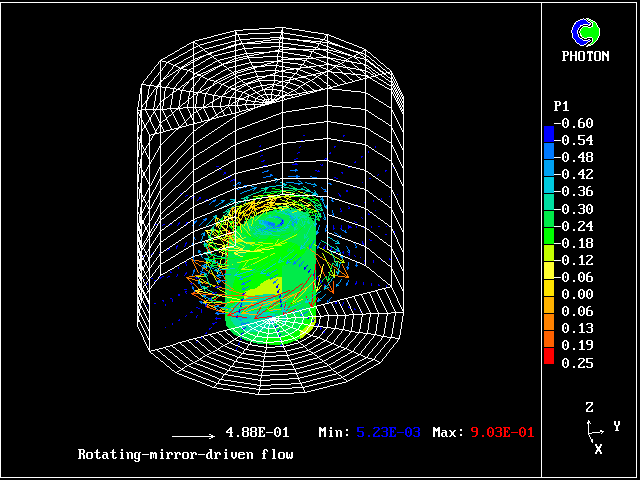

    Velocity vectors below and above mirror surface
