TITLE : TWO PHASE FLOW IN A COMPUTER CABINET
BY : S Zhubrin - CHAM-MEI DATE: SEPTEMBER 1995
PHOENICS VERSION: 1.4 Shareware
- Two-phase mixture of saturated liquid nytrogen with its
vapour flows through the computer cabinet with two
heat-generating chips and one adiabatic internal wall.
- The gaseous N2 is generated on the heated chip surfaces
governed by simple heat balance.
- PLANT is used to insert the GROUND coding for the
introduction of linear interphase friction law.
Further details of PLANT:
- PLANT is a PHOENICS add-on which allows users to change
the coding within certain GROUND groups and sections using
PIL instructions in the Q1 file.
- PLANT can include GROUND coding for non-linear property
correlations, interphase transport features, initial fields,
non-linear source laws and output control calculations.
- PLANT is intended for use by those with a need to include
GROUND routines but who either lack the necessary FORTRAN
knowledge or who wish to same time by placing the necessary
commands in the Q1 file
- PLANT adds the required coding into GROUND and recompiles
the EARTH executable before starting the run.
- PLANT is included in PHOENICS 1.4 Shareware.
Pictures are as follows :

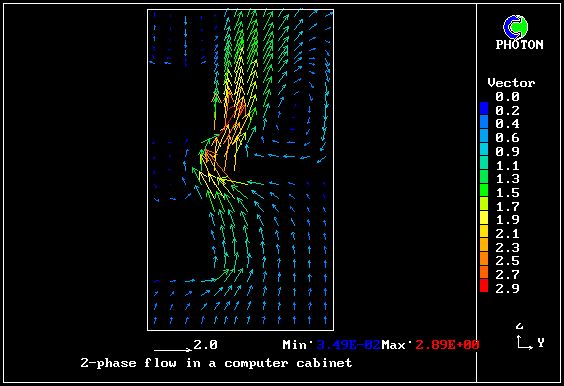

Liquid N2 velocity distribution

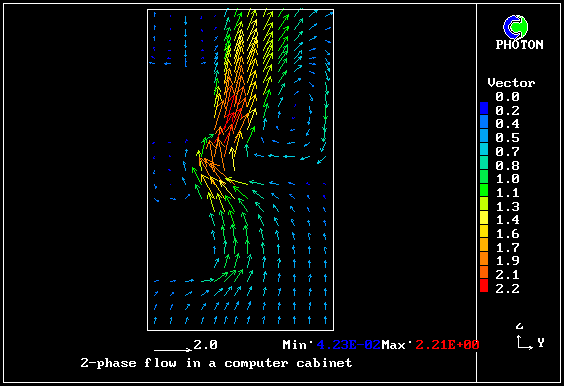

Gaseous N2 velocity distribution
Gaseous N2 volume fraction contours
