TITLE: Geometry Created for VR - Racing Car

BY: CHAM Consultancy Team - CHAM UK

DATE: 1997

Details:

• The geometry of a Formula 1 racing car was created by discretizing its shape into coordinates (x, y, z)

• The coordinates were rescaled and repositioned so that:

  | x | | x | min | y | = 0 max | y | = 1 | z | | z |

• The scaled coordinates and information detailing each facet of the geometry were placed in a data file.

• Using the created geometry, flow was calculated over its surface.

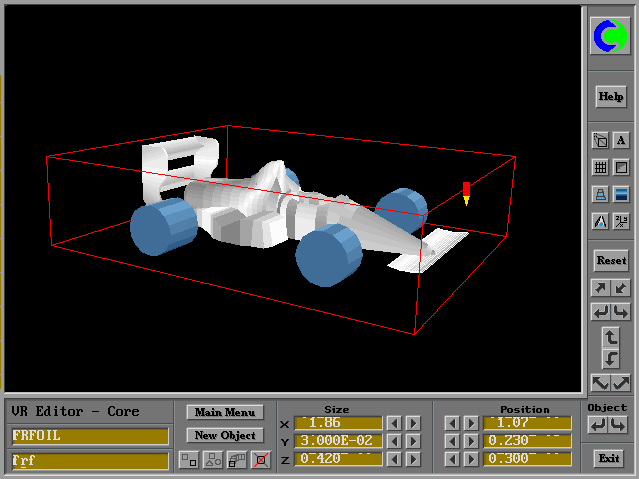

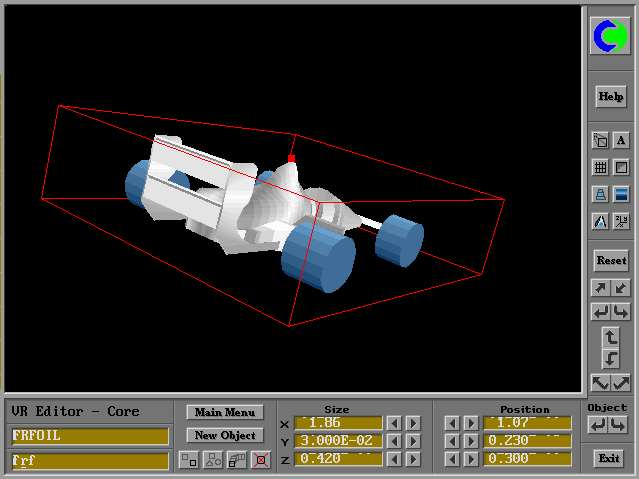

  The following pictures show the created geometry from two different angles.

  angle1
  angle2
