BY : NNC Ltd. - R P Hornby
FOR : NNC Ltd. D,P&E Business Division
DATE : 1994
PHOENICS Version : 1.6 , 2.0
The pictures are as follows:
1.Flow generated in a typical refuse incinerator.The air flow is approximately 18 m^3/s with one third of this being introduced as secondary flows. 2.Combustion takes place on and above the angled grate and heat is extracted from the flow by tubed water boilers.Total heat generated by combustion is about 60MW. 3.Thermal NOX calculation showing concentration of nitric oxide
For further information about the above model or CFD at NNC please contact :-
Dr Bob Hornby NNC Ltd. Tel : 0565 - 633800 x 3912 Fax : 0565 - 633659

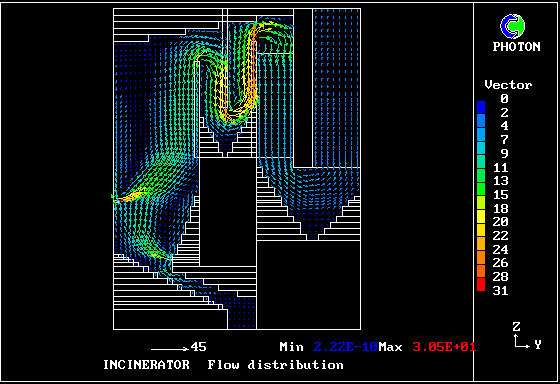

Flow generated in a typical refuse incinerator

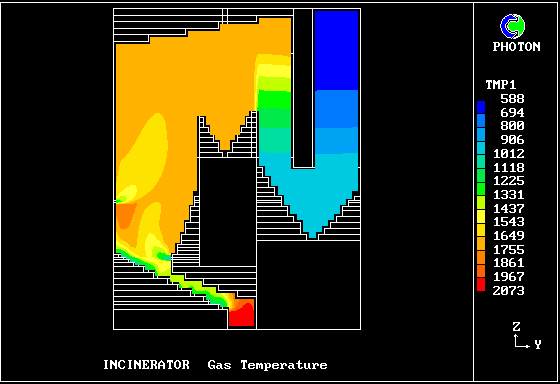

Combustion takes place on and above the angled grate

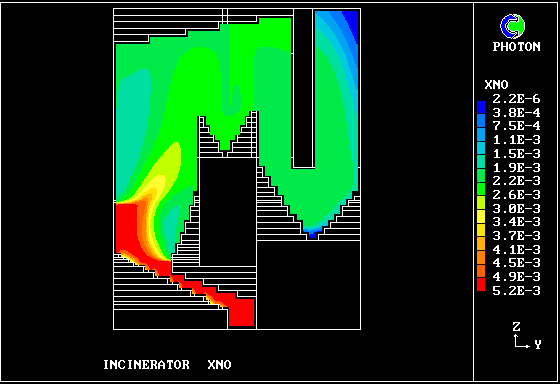

Thermal NOX calculation showing concentration of nitric oxide
