TITLE : BFC RADIATION+HEAT SOURCE IN A SLAB (LIBRARY CASE R125)

BY : CHAM Consultancy Team

DETAILS :

• Radiative heat transfer in a 3D box is considered. Four of the walls are kept at constant but different temperatures; the other two walls are assumed to be adiabatic. The emissivities of the walls are assumed to be equal.

• The RADIAT command is used to activate the radiation model of subroutine GXRADI.

Pictures are as follows :

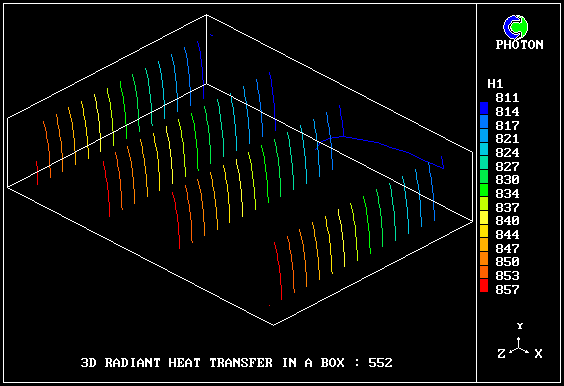

1. Temperature distribution

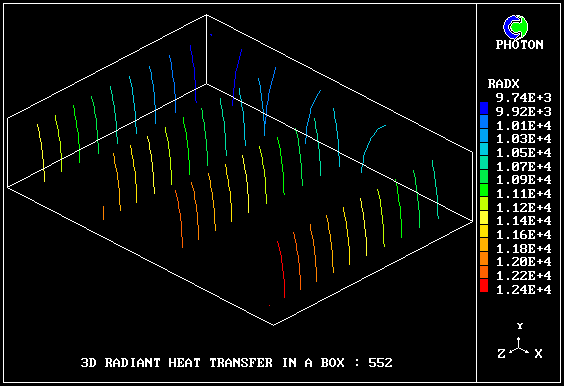

2. X-wise radiative flux

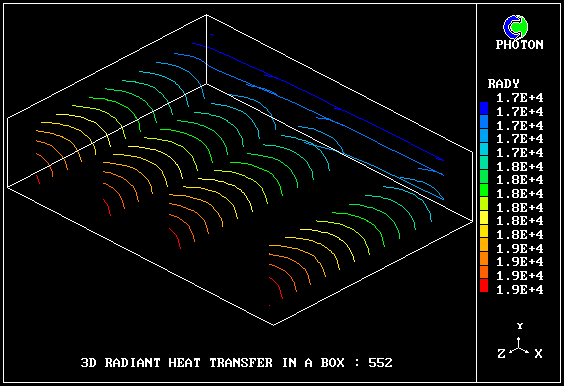

3. Y-wise radiative flux

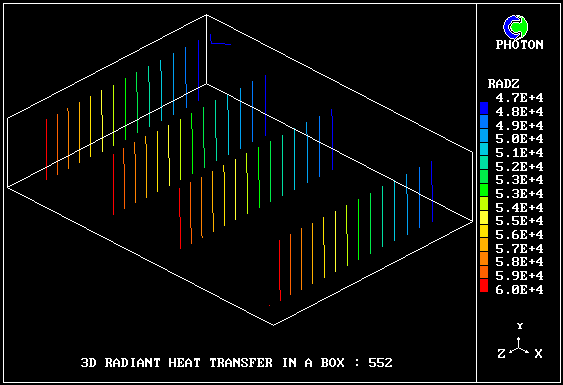

4. Z-wise radiative flux
