TITLE   : RADIATION AND CONVECTION FROM A HOT BLOCK (LIBRARY CASE 566)

  BY      : CHAM Consultancy Team

  DETAILS :

   -   Patches representing external heat loss by radiation
       (proportional to (Ts**4-Text**4))
       and by free convection
       (proportional to (Ts-Text)**n)
       are placed on the external surfaces of a heat-conducting block


  Pictures are as follows :

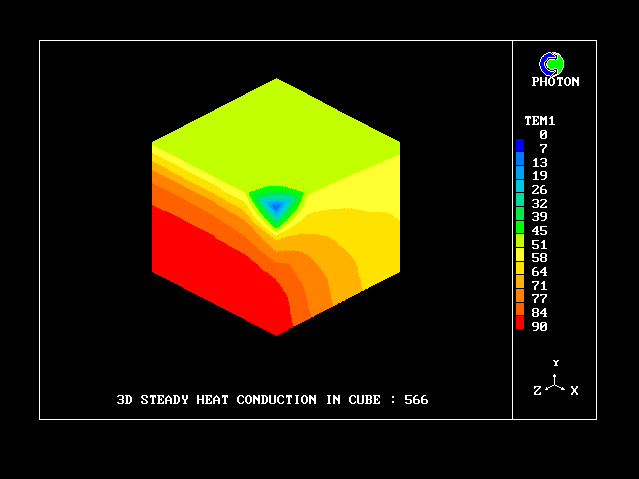

1. Temperature contours
