TITLE : COOLING OF A HEATED BLOCK (LIBRARY CASE 266)

BY : CHAM Consultancy Team

DETAILS :

• The flow of air over a solid block is computed, and the velocity fields are saved. The enthalpy field that results from the uniform heating of the solid block cooled by the velocity field determined in the first run is calculated.

• The flow is two-dimensional and the k-e turbulence model is used.

Pictures are as follows :

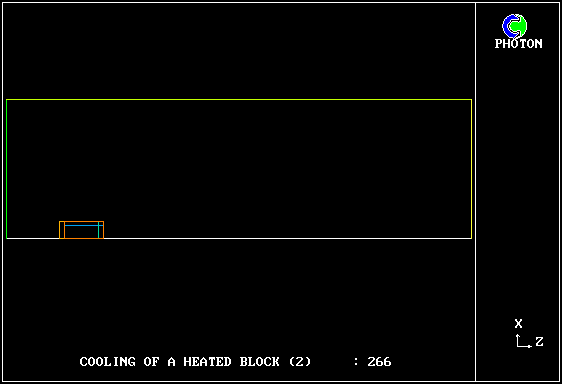

1. Geometry of the problem

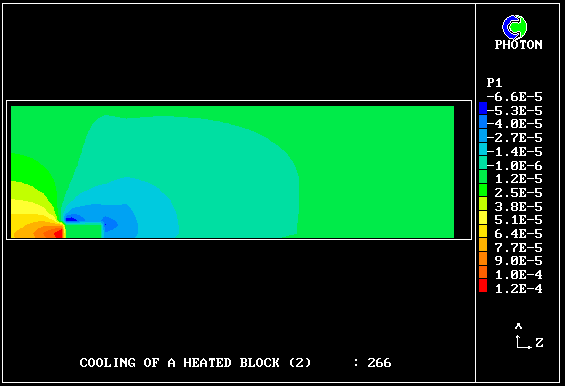

2. Pressure distribution.

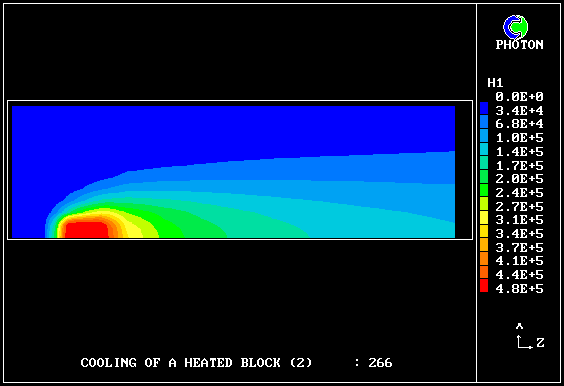

3. Enthalpy distribution.

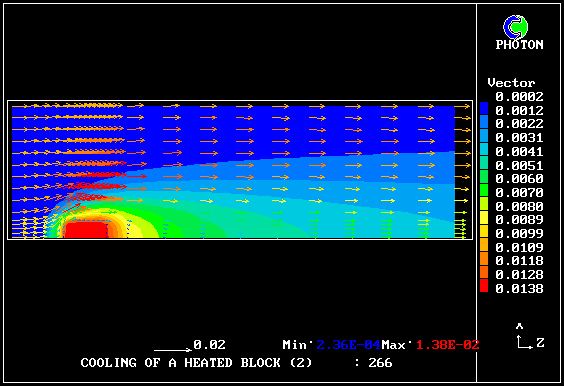

4. Velocity vectors
