TITLE : PHOENICS IN THE ENVIRONMENT
FLOW AROUND A GROUP OF BUILDINGS (Library Case : 607)
BY : CHAM Development Team - N Baltas
- Q Zhou
FOR : Parallel PHOENICS Development benchmark case
DATE : 1993 PHOENICS Version : 2.0
DETAILS :
- Three-Dimensional Steady flow
- Cartesian Computational Grid
NOTES :
- Simulation predicts the air movement around a group of buildings
- An additional PHOENICS feature is demonstrated, namely the ability to
predict the spread of particles through the computational domain
- Here we track the spread of smoke as it leaves an Industrial Chimney
stack and passes over the buildings
Picture as follows :

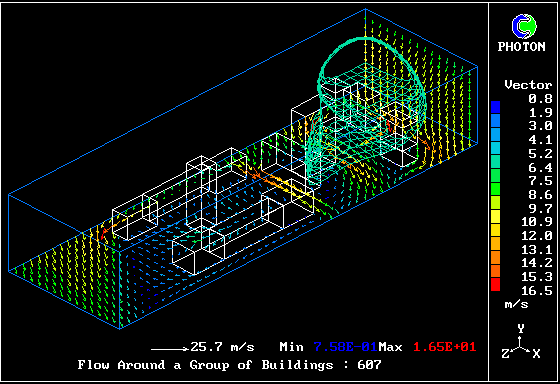

Ground Level Velocity Vectors with Smoke Surface Contours
