TITLE : HOTBOX EXAMPLE : REMOTE BASE-STATION DIAGNOSTIC SYSTEM

BY : CHAM Development Team - S N Drake, D Radosavljevic
FOR : Motorola ECID Ltd.
DATE : 1992
PHOENICS Version : HOTBOX 1.6.6

DETAILS :

• Three-Dimensional Steady flow
• Cartesian Computational Grid

NOTES :

• The Remote Base-Station Diagnostic System (RBDS) is a device for fault detection and remote communications
• Contains 7 PCBs, power supply unit, radio telephone and a boxed radial cooling fan.
• Heat sources from power supply unit and PCBs
• Cooling fan draws ambient air indirectly from side vents
• Warm air is exhausted through floor grilles

Picture as follows :

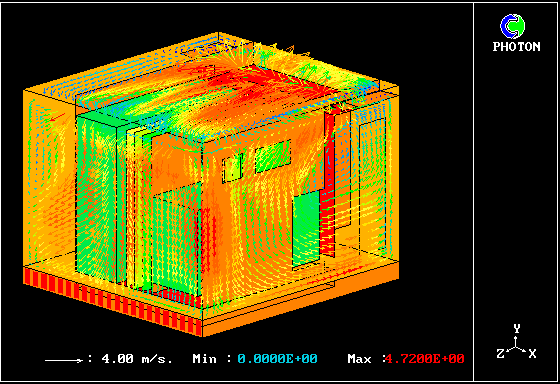

Geometry Layout with Velocity Vectors
