TITLE : CH4/AIR COMBUSTION (LIBRARY CASE C113)
BY : CHAM Consultancy Team
- The combustion of a methane jet in air is considered.
Fuel enters the lower half of the domain on the right,
with air, having the same velocity, entering at the top.
- The fuel burns at the interface between the two flows.
- The flow is two-dimensional and the k-e turbulence model
Pictures are as follows :

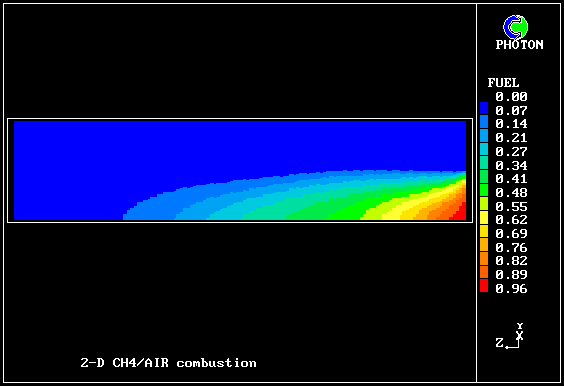

1. Fuel mass fraction

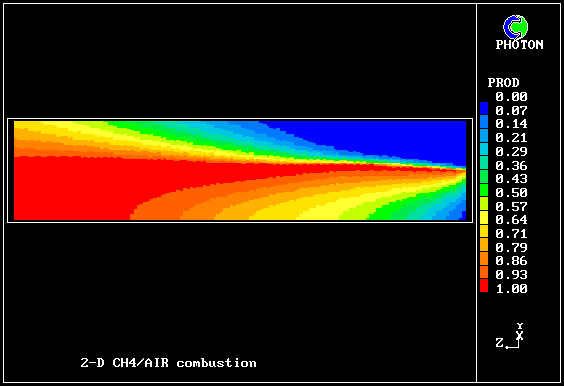

2. Product mass fraction

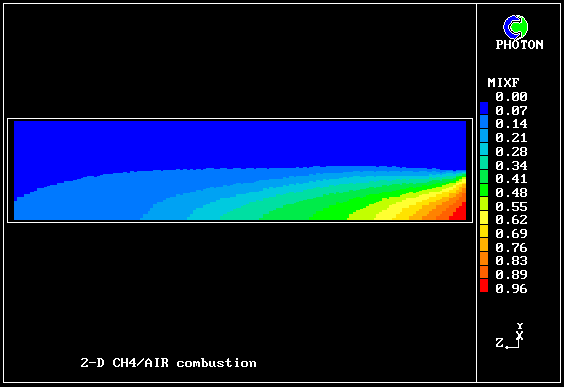

3. Mixture fraction

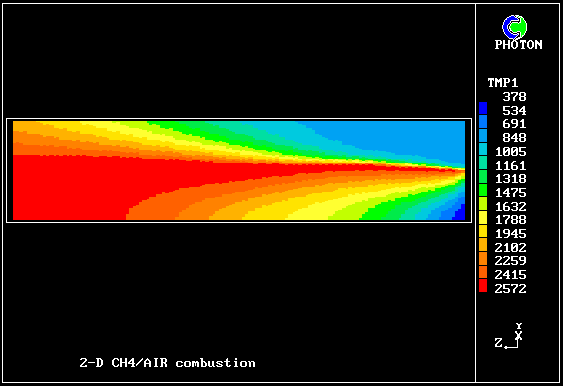

4. Temperature contours

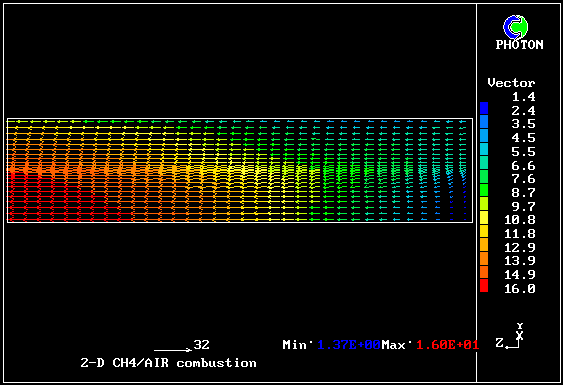

5. Velocity vectors
