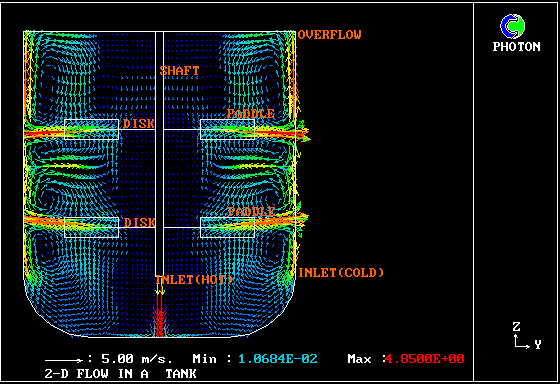

TITLE : TWO-DIMENSIONAL FLOW IN A TANK - CYLINDRICAL SEPARATOR

BY : CRC Research Institute Inc. Japan
FOR : Demonstration case
DATE : 1991
PHOENICS Version : 1.5

DETAILS :

• Two-Dimensional steady flow

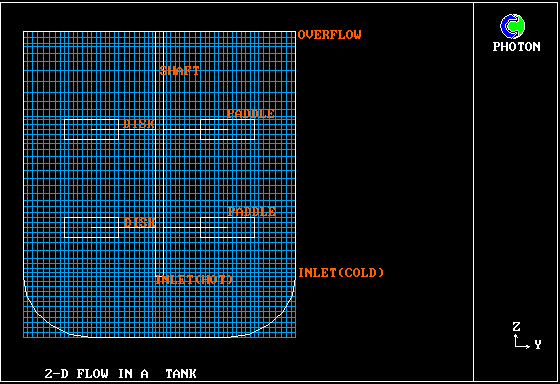

• Cylindrical polar computational grid

NOTES :

• Hot water enters the cold water medium through the bottom of the hollow rotational shaft
• The central shaft has two sets of paddles are attached to it
• The rotational velocity of the paddle is 60 rpm
