TITLE : Mixing in 3D Pipework
BY : IKOSS-CSS GmbH, Germany - H.-W. Mindt
FOR : Industrial client
DATE : 1995
PHOENICS Version : 2.1.1
DETAILS :
- Three-dimensional turbulent steady flow.
- Multi-block with two blocks.
NOTES :
- The grid was defined in FEMGEN/VIEW.
- A T-Mixer is to be optimized to give a homogeneous mixture of
two fluids.
PICTURES :
1. Geometry.
2. The vector field.
3. The concentration contours for fluid 1.
4. The concentration contours for fluid 2.
5. The pressure distribution.
6. The turbulent kinematic viscosity distribution.
1. Geometry.

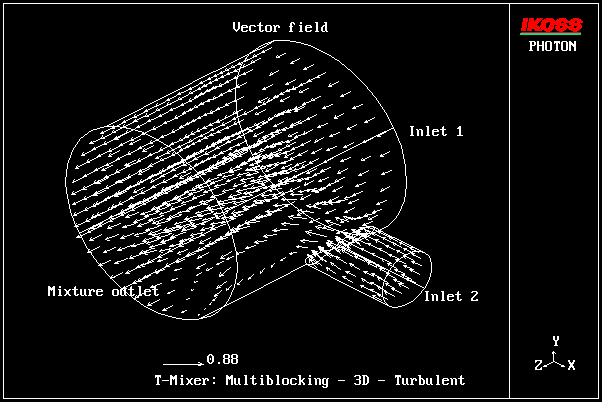

2. The vector field.

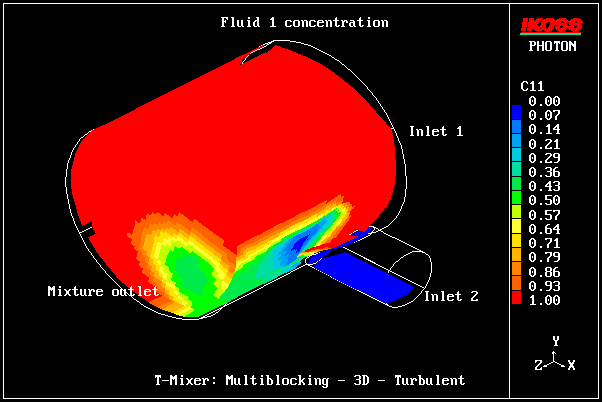

3. The concentration contours for fluid 1.

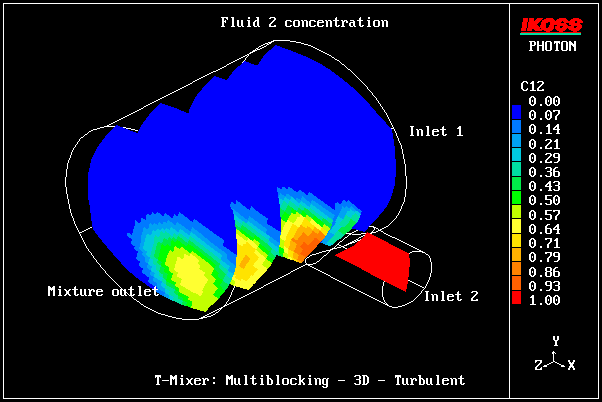

4. The concentration contours for fluid 2.

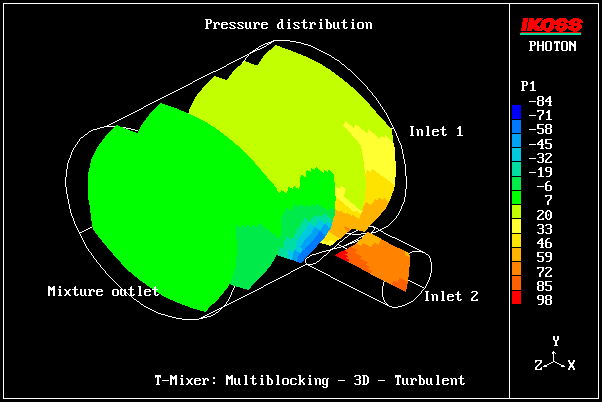

5. The pressure viscosity distribution.

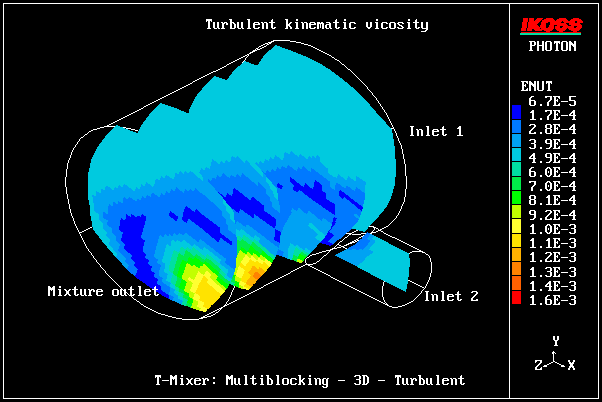

6. The turbulent kinematic viscosity distribution.
