TITLE : Mixing in 2D Pipework

BY : IKOSS-CSS GmbH, Germany - M. Megahed
FOR : Industrial client
DATE : 1994
PHOENICS Version : 2.1

DETAILS :

• Two-dimensional steady flow.
• Multiblock computational grid.

NOTES :

• Three fluids are continuously mixed in a pipeline.
• The turbulent mixing (Re>2000) is due to turbulent diffusion.

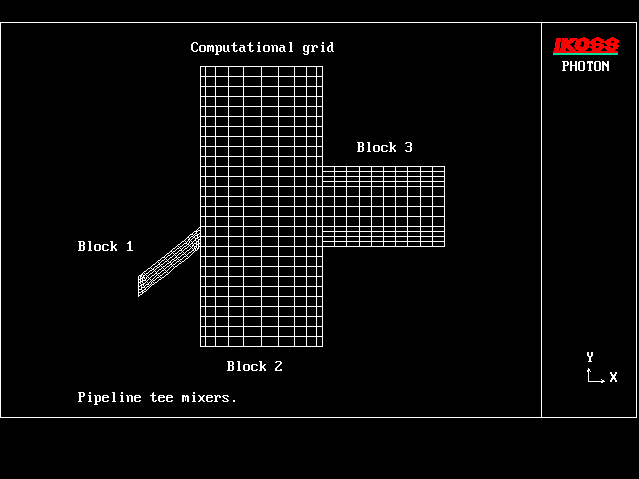

1. Geometry

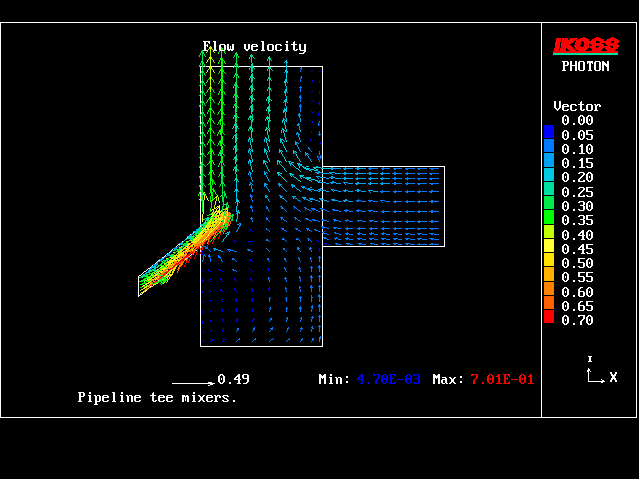

2. Flow velocity

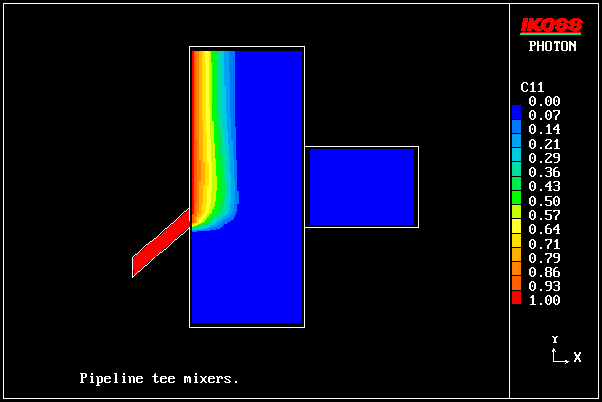

3. Concentration of fluid 1

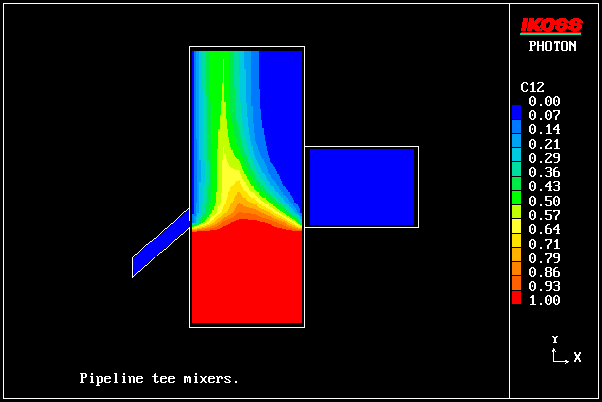

4. Concentration of fluid 2

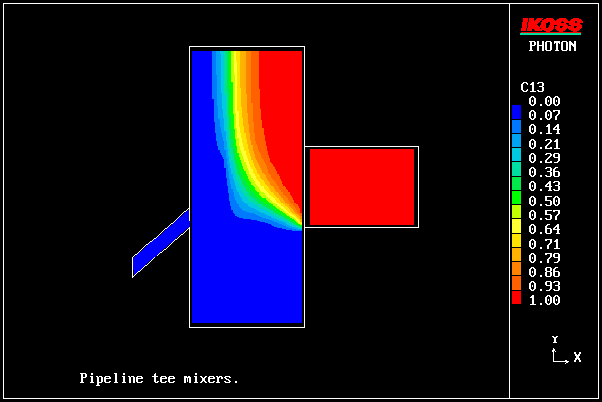

5. Concentration of fluid 1
