TITLE : PHOENICS FEATURE - MULTI-BLOCKING

EXAMPLE 9 : CHEMICAL VAPOUR DEPOSITION (CVD) UNSTRUCTURED GRID - FINE GRID EMBEDDING

BY : CHAM Development Team - I POLIAKOV and S SEMIN FOR : Software development DATE : 1994 PHOENICS Version : 2.0

DETAILS :

• Three-Dimensional Steady flow
• Curvilinear(BFC) computational grid incorporating a fine grid embedding
• Simulation describes the process of Chemical Vapour Deposition (CVD) around a symmetrical wafer plate

Pictures as follows : 1. Computational Grid 2. Velocity Vectors 3. Temperature Distribution Contours

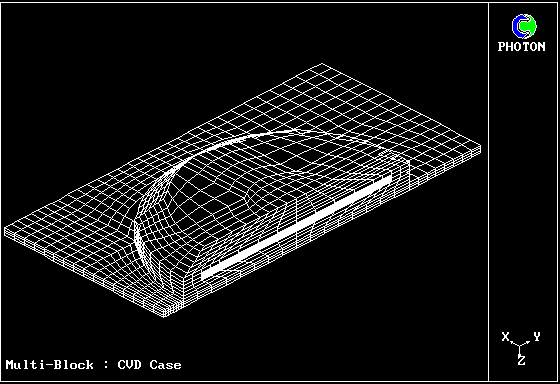

0 Computational Grid

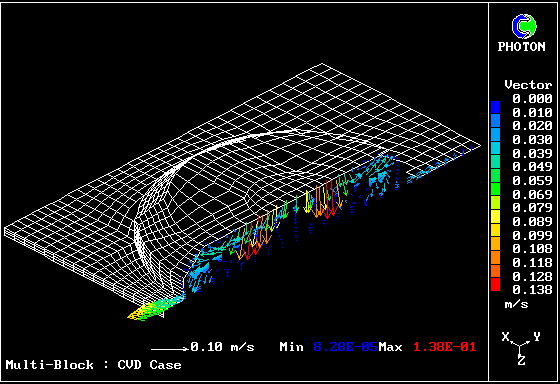

0 Velocity Vectors

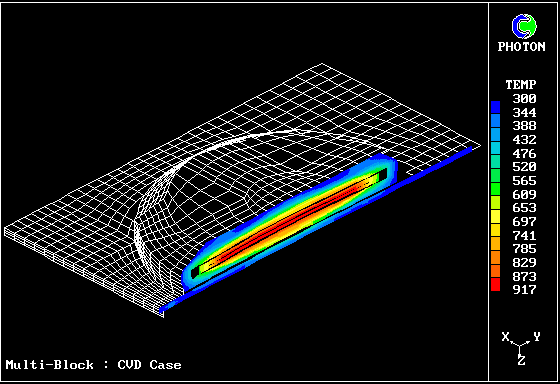

0 Temperature Distribution Contours
