TITLE : PHOENICS IN THE METALLURGICAL INDUSTRY - DISTRIBUTOR CAP MOULD FILLING EXAMPLE

BY : CHAM Consultancy Team - I S Hamill, LIU JUN and N P Waterson
FOR : International Conference - Bristol 1991
DATE : 1991
PHOENICS Version : 1.6

DETAILS :

• Three-Dimensional, Transient Flow
• Curvilinear (BFC) computational grid

NOTES :

• Model for simulation of mould filling processes with complex geometries
• General application to a variety of mould filling situations, including:
• SRIM (Structural Reaction Injection Moulding) and
• RTM (Resin Transfer Moulding)

The Pictures are as follows :

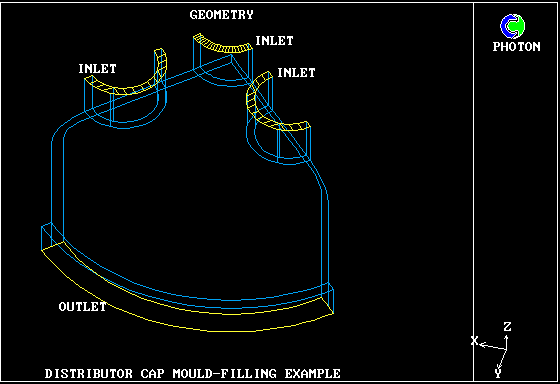

Geometrical Configuration

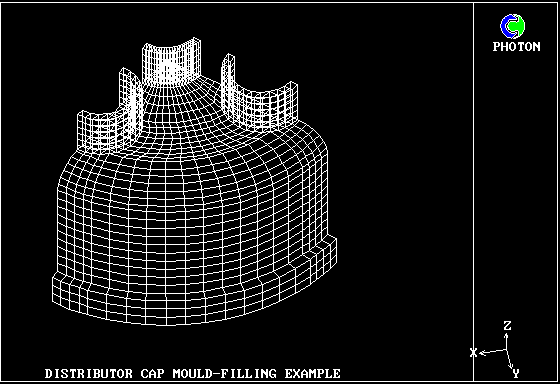

Computational Grid

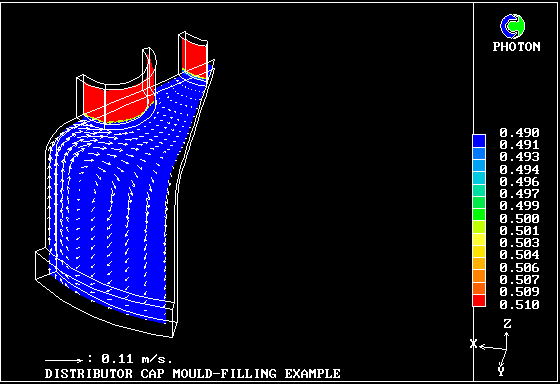

Conditions after 1.0 seconds

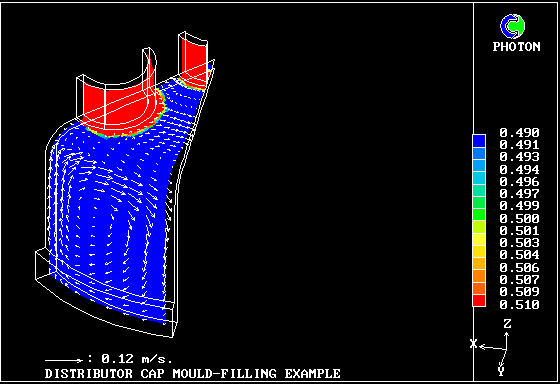

Conditions after 2.0 seconds
