The pictures are as follows:

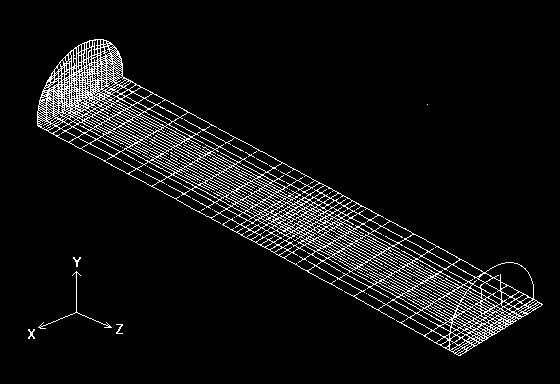

Figure 1. Bfc grid used in the simulations.

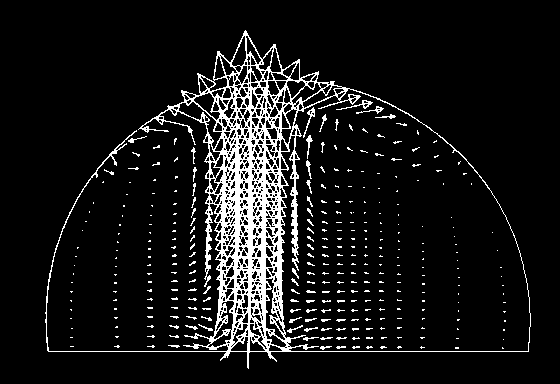

Figure 2. Velocity field in a cylindrical section through the fire.
Figure 3. Comparison between numerical and experimental centre-line pressures.In this case a 50.7 kW fire was simulated.
Figure 4. Comparison between numerical and experimental centre-line temperature stratification at two distances from the rear of the cabin.

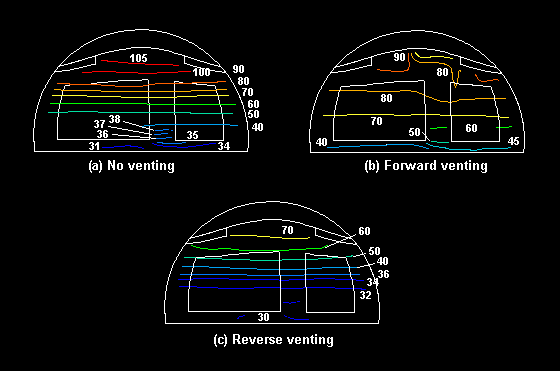

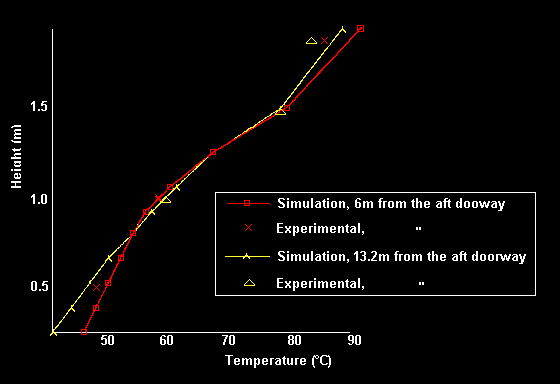

Figure 5. Temperature contours in a cylindrical section located midway between the rear of the cabin and the fire, for the cases (a) without venting, (b) with forward venting and (c) reverse venting.
Full details of the PHOENICS simulation may be obtained in:
The mathematical modelling and computer simulation of fire development in an aircraft.
E R Galea & N C Markatos
International Journal of Heat and Mass Transfer, Vol 34, No 1, 1991
Prediction of fire development in aircraft
E R Galea & N C Markatos
Presented at the 2nd International PHOENICS User Conference, Nov. 1987
