TEXT( CURVED DUCT
  DISPLAY

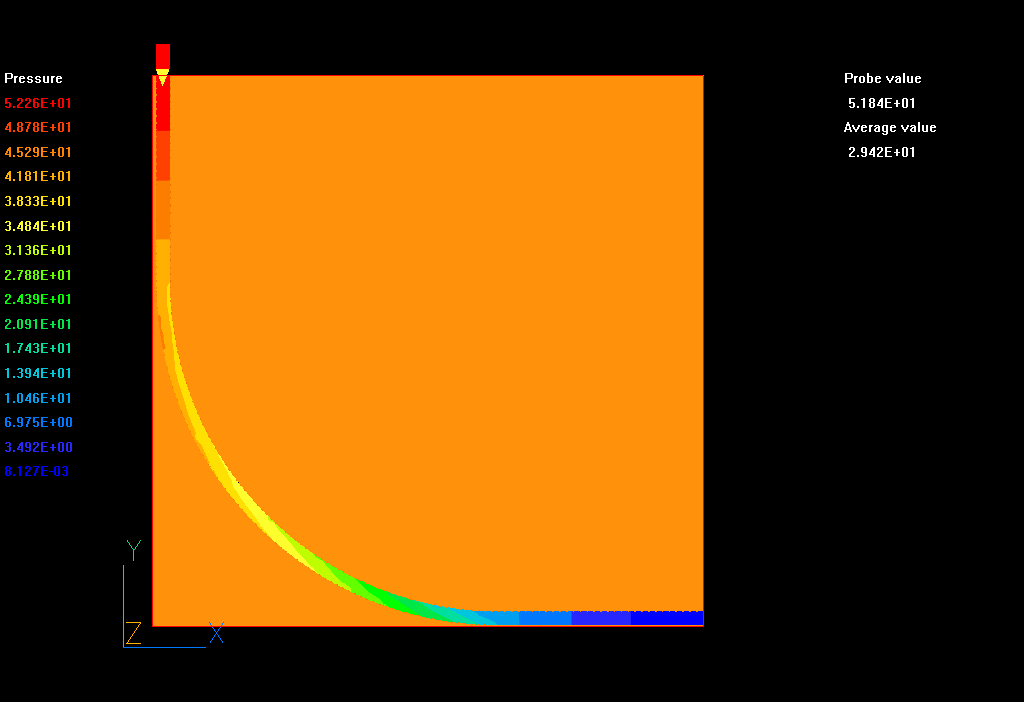

  Click here to see P1 from simulation

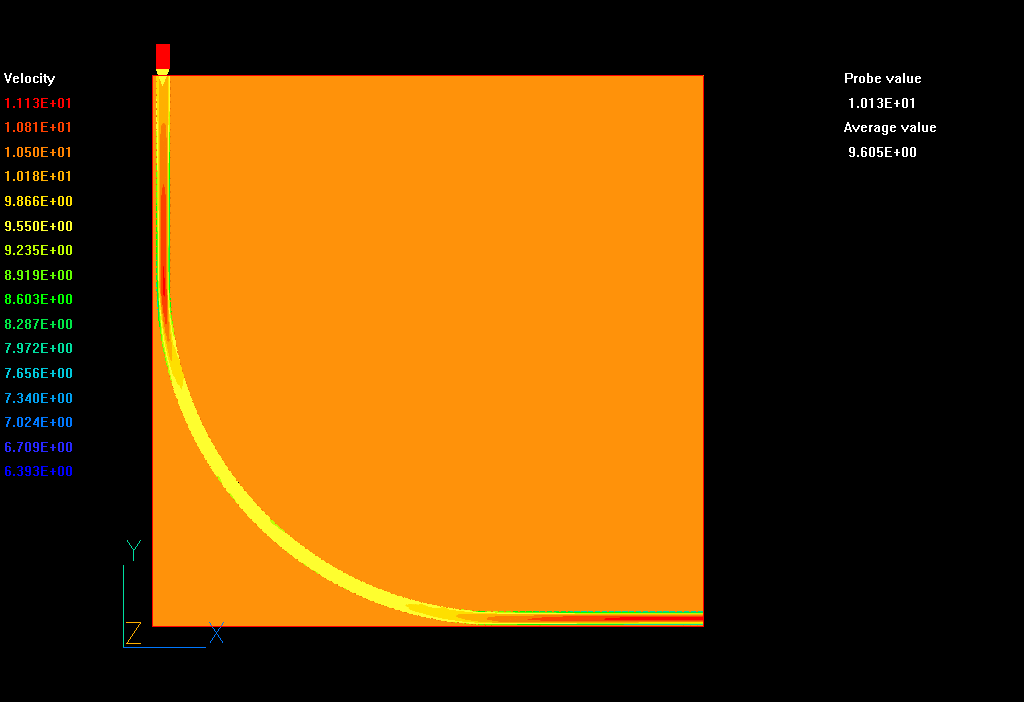

  Click here to see velocity from simulation

  ENDDIS
 TALK=T;RUN( 1, 1)

 ************************************************************
   Q1 created by VDI menu, Version 3.5, Date 16/12/02
 CPVNAM=VDI;SPPNAM=Core
 ************************************************************
 IRUNN   =         1 ;LIBREF =         143
 ************************************************************
  Group 1. Run Title
 TEXT(cartes hollow ps                        )
 ************************************************************
  Group 2. Transience
 STEADY  =    T
 ************************************************************
  Groups 3, 4, 5  Grid Information
    * Overall number of cells, RSET(M,NX,NY,NZ,tolerance)
 RSET(M,110,110,1)
 ************************************************************
  Group 6. Body-Fitted coordinates
 ************************************************************
  Group 7. Variables: STOREd,SOLVEd,NAMEd
 ONEPHS  =    T
 NAME(150) =EPKE
    * Solved variables list
 SOLVE(P1  ,U1  ,V1  )
    * Stored variables list
 STORE(EPKE)
    * Additional solver options
 SOLUTN(P1  ,Y,Y,Y,N,N,Y)
 TURMOD(KEMODL)

 ************************************************************
  Group 8. Terms & Devices
 ************************************************************
  Group 9. Properties
 PRESS0  = 1.000000E+05 ;TEMP0  = 2.730000E+02
 SETPRPS(1,  0)
 DVO1DT  = 3.410000E-03
 PRT   (EP  ) =  1.314000E+00
 ************************************************************
  Group 10.Inter-Phase Transfer Processes
 ************************************************************
  Group 11.Initialise Var/Porosity Fields
   RESTRT(ALL)
   No PATCHes used for this Group


 INIADD  =    F
 ************************************************************
  Group 12. Convection and diffusion adjustments
   No PATCHes used for this Group
 ************************************************************
  Group 13. Boundary & Special Sources
   No PATCHes used for this Group

 EGWF    =    T
 ************************************************************
  Group 14. Downstream Pressure For PARAB
 ************************************************************
  Group 15. Terminate Sweeps
 LSWEEP  =      2000
 RESFAC  = 1.000000E-03
 ************************************************************
  Group 16. Terminate Iterations
 LITER (P1  ) =      100 ;LITER (U1  ) =       20
 LITER (V1  ) =       20
 ************************************************************
  Group 17. Relaxation
 RELAX(P1  ,LINRLX, 1.000000E+00)
 RELAX(U1  ,FALSDT, 1.000000E-04)
 RELAX(V1  ,FALSDT, 1.000000E-04)
 RELAX(KE  ,LINRLX, 5.000000E-01)
 RELAX(EP  ,LINRLX, 5.000000E-01)
 KELIN   =         3
 ************************************************************
  Group 18. Limits
 VARMAX(U1  ) = 1.000000E+06 ;VARMIN(U1  ) =-1.000000E+06
 VARMAX(V1  ) = 1.000000E+06 ;VARMIN(V1  ) =-1.000000E+06
 ************************************************************
  Group 19. EARTH Calls To GROUND Station
 USEGRD  =    T  ;USEGRX =    T
 GENK    =    T
 ASAP    =    T
 PARSOL  =    T
 ************************************************************
  Group 20. Preliminary Printout
 ECHO    =    T
 ************************************************************
  Group 21. Print-out of Variables
 ************************************************************
  Group 22. Monitor Print-Out
 IXMON   =         6 ;IYMON  =       110 ;IZMON  =         1
 NPRMON  =    100000
 NPRMNT  =         1
 TSTSWP  =        -1
 ************************************************************
  Group 23.Field Print-Out & Plot Control
 NPRINT  =    100000
 ISWPRF  =         1 ;ISWPRL =    100000
   No PATCHes used for this Group
 ************************************************************
  Group 24. Dumps For Restarts

 GVIEW(P,0.000000E+00,0.000000E+00,1.000000E+00)
 GVIEW(UP,0.000000E+00,1.000000E+00,0.000000E+00)

> DOM,    SIZE,        8.000000E-01, 8.000000E-01, 5.000000E-02
> DOM,    MONIT,       1.500000E-02, 7.839830E-01, 2.500000E-02
> DOM,    SCALE,       1.000000E+00, 1.000000E+00, 1.000000E+00
> DOM,    SNAPSIZE,    1.000000E-02
> GRID,   RSET_X_1,     11, 1.000000E+00
> GRID,   RSET_X_2,     79, 1.000000E+00,G
> GRID,   RSET_X_3,     20, 1.100000E+00,G
> GRID,   RSET_Y_1,     10, 1.000000E+00
> GRID,   RSET_Y_2,     80, 1.000000E+00
> GRID,   RSET_Y_3,     20, 1.100000E+00,G

> OBJ,    NAME,        ELBOW
> OBJ,    POSITION,    0.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        8.000000E-01, 8.000000E-01, 5.000000E-02
> OBJ,    CLIPART,     elbowpip
> OBJ,    ROTATION24,        1
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    MATERIAL,      198

> OBJ,    NAME,        IN
> OBJ,    POSITION,    0.000000E+00, 8.000000E-01, 0.000000E+00
> OBJ,    SIZE,        3.000000E-02, 0.000000E+00, 5.000000E-02
> OBJ,    CLIPART,     cube3t
> OBJ,    ROTATION24,        1
> OBJ,    TYPE,        INLET
> OBJ,    PRESSURE,      0.000000E+00
> OBJ,    VELOCITY,      0.000000E+00,-1.000000E+01, 0.000000E+00
> OBJ,    TEMPERATURE,   0.000000E+00
> OBJ,    TURB-INTENS,   5.000000E+00

> OBJ,    NAME,        OUT
> OBJ,    POSITION,    8.000000E-01, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 2.500000E-02, 5.000000E-02
> OBJ,    CLIPART,     cube12t
> OBJ,    ROTATION24,        1
> OBJ,    TYPE,        OUTLET
> OBJ,    PRESSURE,      0.000000E+00
> OBJ,    TEMPERATURE,   SAME
> OBJ,    COEFFICIENT,   1.000000E+03
> OBJ,    TURBULENCE,    SAME        , SAME

> OBJ,    NAME,        B4
> OBJ,    POSITION,    0.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        5.000001E-01, 5.000001E-01, 5.000000E-02
> OBJ,    CLIPART,     wirexyz
> OBJ,    ROTATION24,        1
> OBJ,    TYPE,        NULL
STOP
lsweep= 3000
distil=t
 EX(P1  )=   2.654E+00
 EX(U1  )=   4.903E-01
 EX(V1  )=   4.725E-01
 EX(KE  )=   6.699E-02
 EX(EP  )=   1.555E+02
 EX(PRPS)=   1.799E+02
 EX(EPKE)=   5.212E+01
