TALK=T;RUN( 1, 1)

************************************************************
Q1 created by VDI menu, Version 2013, Date 10/01/13
CPVNAM=VDI;SPPNAM=Core
************************************************************
Echo DISPLAY / USE settings
DISPLAY

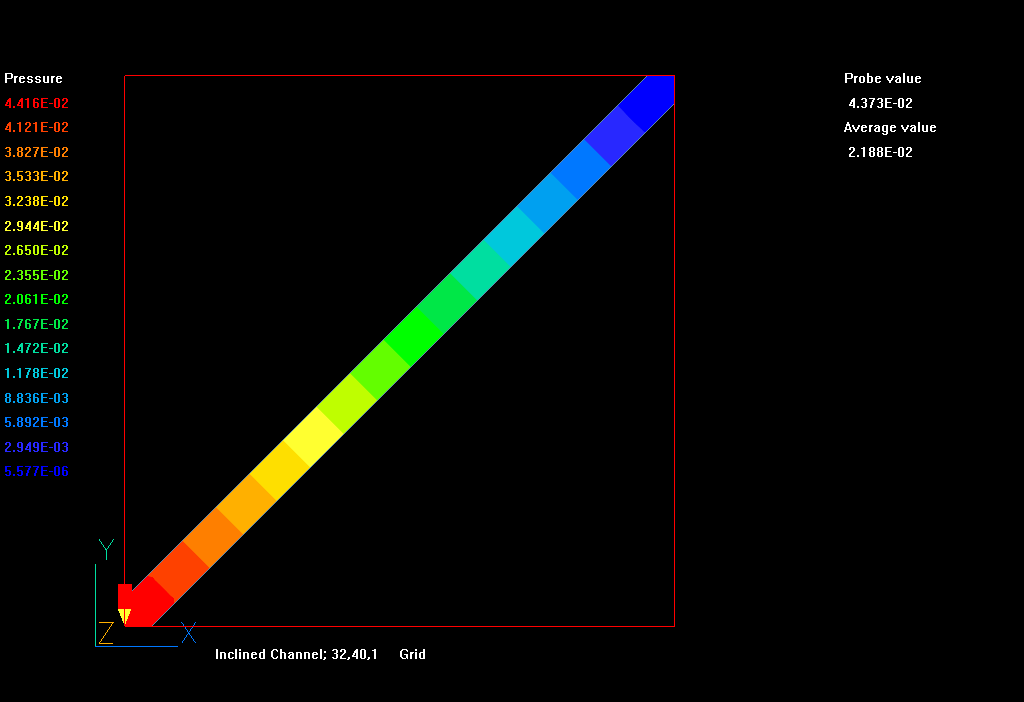

This case is 45 degree duct channel with cut-cell forming
its friction walls. The pressure drop can be calculated
analytically as:

dP = 12*Mu*L*U/(H^2)
where Mu is viscosity, 0.01 [kg/m.s]
L is duct length, 13.4 [m]
H is duct gap, 0.707 [m]
U is mean velocity, 1.41e-2 [m/s]
dP = 4.53e-2

The velocity solution appeared in very good agreement with
analytical solution.

ENDDIS
************************************************************
IRUNN = 1 ;LIBREF = 142
************************************************************
Group 1. Run Title
TEXT(Inclined Channel; grid 152,152,1
************************************************************
Group 2. Transience
************************************************************
Groups 3, 4, 5  Grid Information
* Overall number of cells, RSET(M,NX,NY,NZ,tolerance)
RSET(M,152,152,1)
************************************************************
Group 6. Body-Fitted coordinates
************************************************************
Group 7. Variables: STOREd,SOLVEd,NAMEd
NAME(150) =PRPS
* Solved variables list
SOLVE(P1,U1,V1)
* Stored variables list
STORE(PRPS)
SOLUTN(P1,Y,Y,Y,N,N,Y)
SOLUTN(U1,Y,Y,Y,N,N,Y)
SOLUTN(V1,Y,Y,Y,N,N,Y)

************************************************************
Group 8. Terms & Devices
************************************************************
Group 9. Properties
RHO1 =1.
ENUL =1.0E-02
CP1 =1.
ENUT =0.
************************************************************
Group 10.Inter-Phase Transfer Processes
************************************************************
Group 11.Initialise Var/Porosity Fields
FIINIT(PRPS)=-1.
No PATCHes used for this Group

************************************************************
Group 12. Convection and diffusion adjustments
No PATCHes used for this Group
************************************************************
Group 13. Boundary & Special Sources
No PATCHes used for this Group

EGWF = T
************************************************************
Group 14. Downstream Pressure For PARAB
************************************************************
Group 15. Terminate Sweeps
LSWEEP = 500
RESFAC =1.0E-04
************************************************************
Group 16. Terminate Iterations
************************************************************
Group 17. Relaxation
RELAX(P1 ,LINRLX,1. )
************************************************************
Group 18. Limits
************************************************************
Group 19. EARTH Calls To GROUND Station
CONWIZ = T
************************************************************
Group 20. Preliminary Printout
DISTIL = T ;NULLPR = F
NDST = 0
DSTTOL =1.0E-02
EX(P1)=2.53E-03 ;EX(U1)=1.019E-03
EX(V1)=1.019E-03 ;EX(PRPS)=1.077E-01
************************************************************
Group 21. Print-out of Variables
************************************************************
Group 22. Monitor Print-Out
IXMON = 74 ;IYMON = 73 ;IZMON = 1
NPRMON = 100000
NPRMNT = 1
TSTSWP = -1
************************************************************
Group 23.Field Print-Out & Plot Control
NPRINT = 100000
ISWPRF = 1 ;ISWPRL = 100000
No PATCHes used for this Group
************************************************************
Group 24. Dumps For Restarts

GVIEW(P,0.,0.,1.)
GVIEW(UP,0.,1.,0.)
GVIEW(DEPTH,46.221096)
GVIEW(NEARPLANE,0.02)
GVIEW(VDIS,6.805175)
GVIEW(CENTRE,5.,5.,0.)

> DOM,    SIZE,        1.000000E+01, 1.000000E+01, 1.000000E+00
> DOM,    MONIT,       4.843750E+00, 4.781250E+00, 5.000000E-01
> DOM,    SCALE,       1.000000E+00, 1.000000E+00, 1.000000E+00
> GRID,   RSET_X_1,      4, 1.000000E+00
> GRID,   RSET_X_2,    144, 1.000000E+00
> GRID,   RSET_X_3,      4, 1.000000E+00
> GRID,   RSET_Y_1,      4, 1.000000E+00
> GRID,   RSET_Y_2,    144, 1.000000E+00
> GRID,   RSET_Y_3,      4, 1.000000E+00
> GRID,   RSET_Z_1,      1, 1.000000E+00

> OBJ,    NAME,        B3
> OBJ,    POSITION,    9.500000E+00, 1.000000E+01, 0.000000E+00
> OBJ,    SIZE,        5.000000E-01, 0.000000E+00, 1.000000E+00
> OBJ,    GEOMETRY,    cube12t
> OBJ,    TYPE,        OUTLET
> OBJ,    PRESSURE,    0.
> OBJ,    COEFFICIENT, 1000.

> OBJ,    NAME,        B5
> OBJ,    POSITION,    0.000000E+00, 5.000000E-01, 0.000000E+00
> OBJ,    SIZE,        9.500000E+00, 9.500000E+00, 1.000000E+00
> OBJ,    GEOMETRY,    wedge1
> OBJ,    ROTATION24,  6
> OBJ,    GRID,        N,N,N
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    MATERIAL,    198,Solid with smooth-wall friction

> OBJ,    NAME,        B6
> OBJ,    POSITION,    5.000000E-01, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        9.500000E+00, 9.500000E+00, 1.000000E+00
> OBJ,    GEOMETRY,    wedge1
> OBJ,    ROTATION24,  18
> OBJ,    GRID,        N,N,N
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    MATERIAL,    198,Solid with smooth-wall friction

> OBJ,    NAME,        B7
> OBJ,    POSITION,    0.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        5.000000E-01, 0.000000E+00, 1.000000E+00
> OBJ,    GEOMETRY,    cube3t
> OBJ,    ROTATION24,  11
> OBJ,    TYPE,        INLET
> OBJ,    PRESSURE,    0.
> OBJ,    VELOCITY,    1.0E-02 ,1.0E-02 ,0.

> OBJ,    NAME,        B8
> OBJ,    POSITION,    0.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 5.000000E-01, 1.000000E+00
> OBJ,    GEOMETRY,    cube3t
> OBJ,    TYPE,        INLET
> OBJ,    PRESSURE,    0.
> OBJ,    VELOCITY,    1.0E-02 ,1.0E-02 ,0.

> OBJ,    NAME,        B9
> OBJ,    POSITION,    1.000000E+01, 9.500000E+00, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 5.000000E-01, 1.000000E+00
> OBJ,    GEOMETRY,    cube12t
> OBJ,    TYPE,        OUTLET
> OBJ,    PRESSURE,    0.
> OBJ,    COEFFICIENT, 1000.
STOP
```
