TALK=T;RUN( 1, 1)

 ************************************************************
   Q1 created by VDI menu, Version 2009, Date 26/05/09
 CPVNAM=VDI;SPPNAM=Core
 ************************************************************
  Echo DISPLAY / USE settings
  DISPLAY
  This is a 2D case to demonstrate how to make channel
  or cavity through solid domain or objects. This feature
  can be very helpful for mould designer when he/she
  optimises the design by adding, removing, or changing
  the position of runners or feeders without going back
  to CAD.
  In this example the domain is water, and the domain is
  initially filled with a solid object FILL (hidden). The
  violet cylinder cavity was carved from the solid by a
  cylinder object with domain material.Then the solid black
  cylinder was put in the center of the cavity. The blue
  objects can be runners of domain material, which cut
  through the solid domain-filling object and solid core.

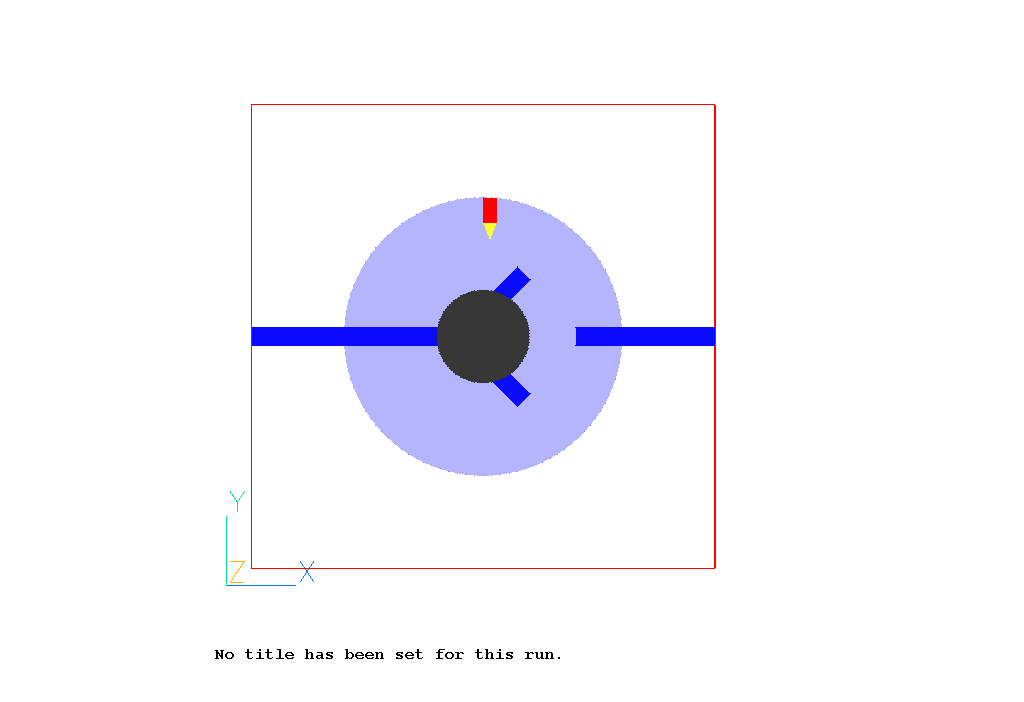

  Click to see objects

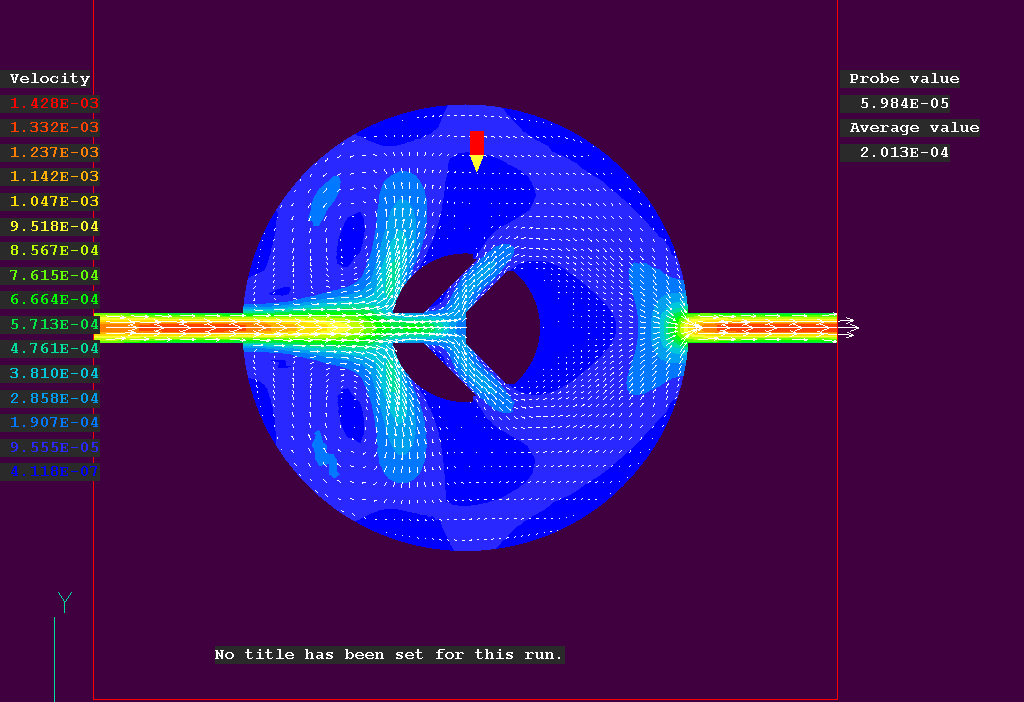

  Click to see the solution
  ENDDIS
 ************************************************************
 IRUNN = 1 ;LIBREF = 137
 ************************************************************
  Group 1. Run Title
 TEXT(Flow through channels cut from solid
 ************************************************************
  Group 2. Transience
 STEADY = T
 ************************************************************
  Groups 3, 4, 5  Grid Information
    * Overall number of cells, RSET(M,NX,NY,NZ,tolerance)
 RSET(M,58,59,1)
 ************************************************************
  Group 6. Body-Fitted coordinates
 ************************************************************
  Group 7. Variables: STOREd,SOLVEd,NAMEd
    * Non-default variable names
 NAME(148)=ENUT ;NAME(150)=WDIS
    * Solved variables list
 SOLVE(P1,U1,V1)
    * Stored variables list
 STORE(WDIS,ENUT)
    * Additional solver options
 SOLUTN(P1,Y,Y,Y,N,N,Y)
 TURMOD(LVEL)

 ************************************************************
  Group 8. Terms & Devices
 ************************************************************
  Group 9. Properties
 PRESS0 =1.0E+05 ;TEMP0 =273.
    * Domain material index is  67 signifying:
    * WATER at 20. deg C
 SETPRPS(1, 67)
 DVO1DT =1.18E-04
 ************************************************************
  Group 10.Inter-Phase Transfer Processes
 ************************************************************
  Group 11.Initialise Var/Porosity Fields
 FIINIT(WDIS)=0.1
   No PATCHes used for this Group


 INIADD = F
 ************************************************************
  Group 12. Convection and diffusion adjustments
   No PATCHes used for this Group
 ************************************************************
  Group 13. Boundary & Special Sources
   No PATCHes used for this Group

 EGWF = T
 ************************************************************
  Group 14. Downstream Pressure For PARAB
 ************************************************************
  Group 15. Terminate Sweeps
 LSWEEP = 1000
 SARAH =5.0E-03
 RESFAC =1.0E-03
 ************************************************************
  Group 16. Terminate Iterations
 LITER(P1)=50
 ************************************************************
  Group 17. Relaxation
 RELAX(P1 ,LINRLX,1. )
 ************************************************************
  Group 18. Limits
 ************************************************************
  Group 19. EARTH Calls To GROUND Station
 CONWIZ = T
 SPEDAT(SET,MAXINC,U1,R,1.)
 SPEDAT(SET,MAXINC,V1,R,1.)
 ************************************************************
  Group 20. Preliminary Printout
 ************************************************************
  Group 21. Print-out of Variables
 OUTPUT(WDIS,Y,N,N,N,N,N)
 ************************************************************
  Group 22. Monitor Print-Out
 IXMON = 28 ;IYMON = 50 ;IZMON = 1
 NPRMON = 100000
 NPRMNT = 1
 TSTSWP = -1
 ************************************************************
  Group 23.Field Print-Out & Plot Control
 NPRINT = 100000
 ISWPRF = 1 ;ISWPRL = 100000
   No PATCHes used for this Group
 ************************************************************
  Group 24. Dumps For Restarts

 GVIEW(P,4.33336E-06,-4.068766E-04,1.)
 GVIEW(UP,4.806923E-03,0.999988,4.068503E-04)

> DOM,    SIZE,        1.000000E+00, 1.000000E+00, 1.000000E+00
> DOM,    MONIT,       5.150000E-01, 7.055556E-01, 5.000000E-01
> DOM,    SCALE,       1.000000E+00, 1.000000E+00, 1.000000E+00
> GRID,   RSET_X_1,      6, 1.000000E+00
> GRID,   RSET_X_2,     10,-1.100000E+00,G
> GRID,   RSET_X_3,     10, 1.000000E+00
> GRID,   RSET_X_4,     10, 1.000000E+00
> GRID,   RSET_X_5,     10, 1.000000E+00
> GRID,   RSET_X_6,      6, 1.100000E+00,G
> GRID,   RSET_X_7,      6, 1.100000E+00,G
> GRID,   RSET_Y_1,      1, 1.000000E+00
  > GRID,   RSET_Y_2,     19, 1.000000E+00
  > GRID,   RSET_Y_3,      8, 1.000000E+00
  > GRID,   RSET_Y_4,      4, 1.000000E+00
  > GRID,   RSET_Y_5,      8, 1.000000E+00
  > GRID,   RSET_Y_6,     18, 1.000000E+00
> GRID,   RSET_Y_7,      1, 1.000000E+00
> GRID,   RSET_Z_1,      1, 1.000000E+00

> OBJ,    NAME,        FILL
> OBJ,    POSITION,    0.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        TO_END,       TO_END,       TO_END
> OBJ,    DOMCLIP,     NO
> OBJ,    GEOMETRY,    box
> OBJ,    VISIBLE,     NO
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    MATERIAL,    198,Solid with smooth-wall friction

> OBJ,    NAME,        B1
> OBJ,    POSITION,    2.000000E-01, 2.000000E-01, 0.000000E+00
> OBJ,    SIZE,        6.000000E-01, 6.000000E-01, TO_END
> OBJ,    DOMCLIP,     NO
> OBJ,    GEOMETRY,    cylinder
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    COLOR-MODE,  USER
> OBJ,    COLOR-VAL,   2
> OBJ,    OPAQUE,      30
> OBJ,    WIREFRAME,   YES
> OBJ,    MATERIAL,    DOMAIN

> OBJ,    NAME,        B3
> OBJ,    POSITION,    4.000000E-01, 4.000000E-01, 0.000000E+00
> OBJ,    SIZE,        2.000000E-01, 2.000000E-01, TO_END
> OBJ,    DOMCLIP,     NO
> OBJ,    GEOMETRY,    cylinder
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    COLOR-MODE,  DEFAULT2
> OBJ,    COLOR-VAL,   42
> OBJ,    OPAQUE,      50
> OBJ,    MATERIAL,    198,Solid with smooth-wall friction

> OBJ,    NAME,        B4
> OBJ,    POSITION,    0.000000E+00, 4.800000E-01, 0.000000E+00
> OBJ,    SIZE,        5.000000E-01, 4.000000E-02, TO_END
> OBJ,    DOMCLIP,     NO
> OBJ,    GEOMETRY,    box
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    COLOR-MODE,  USER
> OBJ,    COLOR-VAL,   2
> OBJ,    OPAQUE,      50
> OBJ,    MATERIAL,    DOMAIN

> OBJ,    NAME,        B5
> OBJ,    POSITION,    0.000000E+00, 4.800000E-01, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 4.000000E-02, TO_END
> OBJ,    DOMCLIP,     NO
> OBJ,    GEOMETRY,    cube3t
> OBJ,    TYPE,        INLET
> OBJ,    PRESSURE,    1.
> OBJ,    VELOCITY,    1. ,0. ,0.
> OBJ,    TEMPERATURE, 0.

> OBJ,    NAME,        B6
> OBJ,    POSITION,    AT_END,       4.800000E-01, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 4.000000E-02, TO_END
> OBJ,    DOMCLIP,     NO
> OBJ,    GEOMETRY,    cube12t
> OBJ,    TYPE,        OUTLET
> OBJ,    PRESSURE,    0.
> OBJ,    TEMPERATURE, SAME
> OBJ,    COEFFICIENT, 1000.

> OBJ,    NAME,        B7
> OBJ,    POSITION,    4.610000E-01, 4.810000E-01, 0.000000E+00
> OBJ,    SIZE,        2.000000E-01, 4.000000E-02, 1.000000E+00
> OBJ,    ROT-ANGLE,   4.500000E+01, 0.000000E+00, 0.000000E+00
> OBJ,    GEOMETRY,    box
> OBJ,    GRID,        NO
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    COLOR-MODE,  USER
> OBJ,    COLOR-VAL,   2
> OBJ,    OPAQUE,      50
> OBJ,    MATERIAL,    DOMAIN

> OBJ,    NAME,        B8
> OBJ,    POSITION,    4.328000E-01, 4.900000E-01, 0.000000E+00
> OBJ,    SIZE,        2.000000E-01, 4.000000E-02, 1.000000E+00
> OBJ,    ROT-ANGLE,  -4.500000E+01, 0.000000E+00, 0.000000E+00
> OBJ,    GEOMETRY,    box
> OBJ,    GRID,        NO
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    COLOR-MODE,  USER
> OBJ,    COLOR-VAL,   2
> OBJ,    OPAQUE,      50
> OBJ,    MATERIAL,    DOMAIN

> OBJ,    NAME,        B9
> OBJ,    POSITION,    7.000000E-01, 4.800000E-01, 0.000000E+00
> OBJ,    SIZE,        TO_END,       4.000000E-02, TO_END
> OBJ,    DOMCLIP,     NO
> OBJ,    GEOMETRY,    box
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    COLOR-MODE,  USER
> OBJ,    COLOR-VAL,   2
> OBJ,    OPAQUE,      50
> OBJ,    MATERIAL,    DOMAIN
STOP
