DISPLAY
  MOFOR is used  for simulating the influence on the air-flow of a
  Ski-jumper's straightening of his legs.

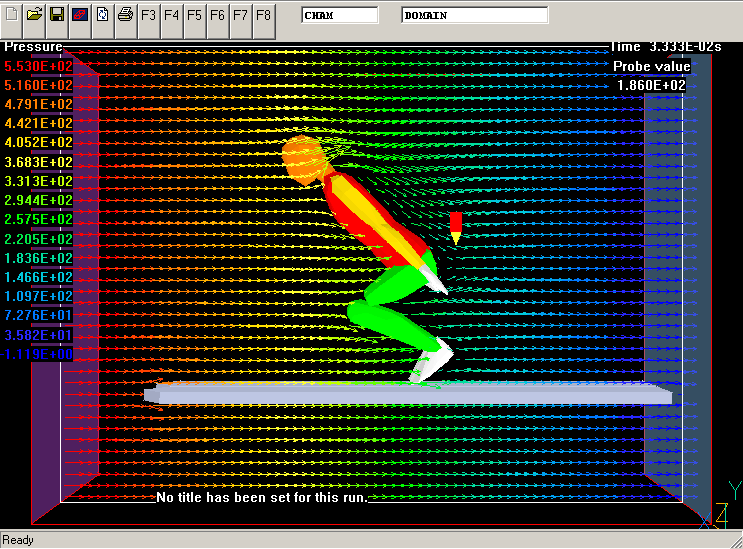

  Click here
  to see animated results from an earlier calculation of this case.
  ENDDIS
 ************************************************************
   Q1 created by VDI menu, Version 3.5, Date 30/07/02
 CPVNAM=VDI;SPPNAM=Core
 ************************************************************
 IRUNN   =       1 ;LIBREF =       127
 ************************************************************
  Group 1. Run Title
 TEXT(Moving ski-jumper via MOFOR
 ************************************************************
  Group 2. Transience
 STEADY=F
    * Set overall time and no. of steps
 RSET(U,0.000000E+00,1.000000E+00,30)
    * Modify regions
 ************************************************************
  Groups 3, 4, 5  Grid Information
    * Overall number of cells, RSET(M,NX,NY,NZ,tolerance)
 RSET(M,95,60,32)
 ************************************************************
  Group 6. Body-Fitted coordinates
 ************************************************************
  Group 7. Variables: STOREd,SOLVEd,NAMEd
 ONEPHS  =    T
 NAME(150) =OBID
    * Solved variables list
 SOLVE(P1  ,U1  ,V1  ,W1  )
    * Stored variables list
 STORE(OBID)
    * Additional solver options
 SOLUTN(P1  ,Y,Y,Y,N,N,Y)

 ************************************************************
  Group 8. Terms & Devices
 ************************************************************
  Group 9. Properties
 PRESS0  = 1.000000E+05 ;TEMP0  = 2.730000E+02
 SETPRPS(1,  0)
 ENUT    = 0.000000E+00
 DRH1DP  = 1.000000E-05
 DVO1DT  = 3.410000E-03
 EMISS   = 0.000000E+00 ;SCATT  = 0.000000E+00
 ************************************************************
  Group 10.Inter-Phase Transfer Processes
 ************************************************************
  Group 11.Initialise Var/Porosity Fields
   No PATCHes used for this Group


 INIADD  =    F
 ************************************************************
  Group 12. Convection and diffusion adjustments
   No PATCHes used for this Group
 ************************************************************
  Group 13. Boundary & Special Sources
   No PATCHes used for this Group

 EGWF    =    T
 ************************************************************
  Group 14. Downstream Pressure For PARAB
 ************************************************************
  Group 15. Terminate Sweeps
 LSWEEP  =      30
 RESFAC  = 1.000000E-03
 ************************************************************
  Group 16. Terminate Iterations
 ************************************************************
  Group 17. Relaxation
 RELAX(P1  ,LINRLX, 7.000000E-01)
 RELAX(U1  ,FALSDT, 6.666667E-03)
 RELAX(V1  ,FALSDT, 6.666667E-03)
 RELAX(W1  ,FALSDT, 6.666667E-03)
 ************************************************************
  Group 18. Limits
 VARMAX(U1  ) = 1.000000E+06 ;VARMIN(U1  ) =-1.000000E+06
 VARMAX(V1  ) = 1.000000E+06 ;VARMIN(V1  ) =-1.000000E+06
 VARMAX(W1  ) = 1.000000E+06 ;VARMIN(W1  ) =-1.000000E+06
 ************************************************************
  Group 19. EARTH Calls To GROUND Station
 USEGRD  =    T  ;USEGRX =    T
 ASAP    =    T
 SPEDAT(SET,MOFOR,MOFFILE,C,SKIJUMP.MOF)
 SPEDAT(SET,GXMONI,TRANSIENT,L,F)
 ************************************************************
  Group 20. Preliminary Printout
 ECHO    =    T
 ************************************************************
  Group 21. Print-out of Variables
 ************************************************************
  Group 22. Monitor Print-Out
 IXMON   =      33 ;IYMON  =      35 ;IZMON  =      17
 NPRMON  =  100000
 NPRMNT  =       1
 TSTSWP  =      -1
 ************************************************************
  Group 23.Field Print-Out & Plot Control
 NPRINT  =  100000
 NTPRIN  =  100000 ;ISTPRF =       1 ;ISTPRL =   10000
 ISWPRF  =       1 ;ISWPRL =  100000
   No PATCHes used for this Group
 ************************************************************
  Group 24. Dumps For Restarts
 IDISPA  =       1 ;IDISPB =       0 ;IDISPC =       0
 CSG1    ='S'

 GVIEW(P,6.656818E-01,0.000000E+00,7.462355E-01)
 GVIEW(UP,0.000000E+00,1.000000E+00,0.000000E+00)

> DOM,    SIZE,        3.000000E+00, 2.200000E+00, 9.000000E-01
> DOM,    MONIT,       1.026320E+00, 1.265000E+00, 4.640620E-01
> DOM,    SCALE,       1.000000E+00, 1.000000E+00, 1.000000E+00
> DOM,    SNAPSIZE,    1.000000E-02

> OBJ,    NAME,        SKIJUMP
> OBJ,    POSITION,    3.000000E-01, 2.000000E-01, 1.800000E-01
> OBJ,    SIZE,        2.500000E+00, 1.830000E+00, 5.400000E-01
> OBJ,    CLIPART,     skijmpv3
> OBJ,    ROTATION24,        1
> OBJ,    GRID,              2
> OBJ,    TYPE,        BLOCKAGE
> OBJ,    MATERIAL,       -1
> OBJ,    TIME_LIMITS,   ALWAYS_ACTIVE
> OBJ,    SCAL_FIXF,     0.000000E+00

> OBJ,    NAME,        INLET
> OBJ,    POSITION,    3.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 2.200000E+00, 9.000000E-01
> OBJ,    CLIPART,     cube3t
> OBJ,    ROTATION24,        1
> OBJ,    TYPE,        INLET
> OBJ,    PRESSURE,      0.000000E+00
> OBJ,    VELOCITY,     -5.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    TEMPERATURE,   0.000000E+00
> OBJ,    TIME_LIMITS,   ALWAYS_ACTIVE

> OBJ,    NAME,        OUTLET
> OBJ,    POSITION,    0.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ,    SIZE,        0.000000E+00, 2.200000E+00, 9.000000E-01
> OBJ,    CLIPART,     cube12t
> OBJ,    ROTATION24,        1
> OBJ,    TYPE,        OUTLET
> OBJ,    PRESSURE,      0.000000E+00
> OBJ,    TEMPERATURE,  -1.026000E+04
> OBJ,    COEFFICIENT,   1.000000E+03
> OBJ,    TIME_LIMITS,   ALWAYS_ACTIVE
STOP
