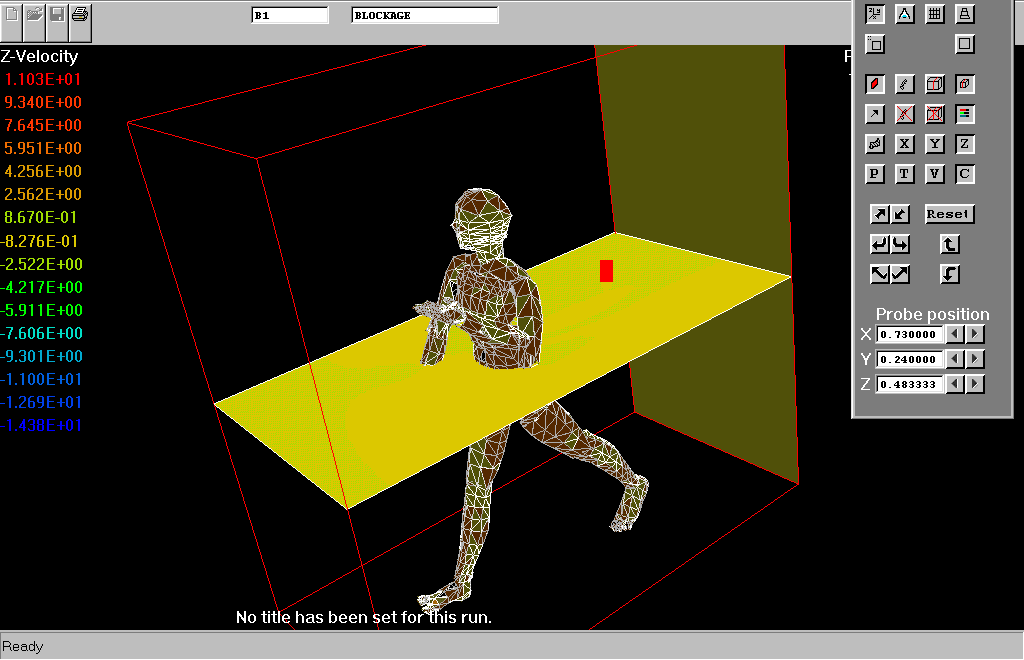

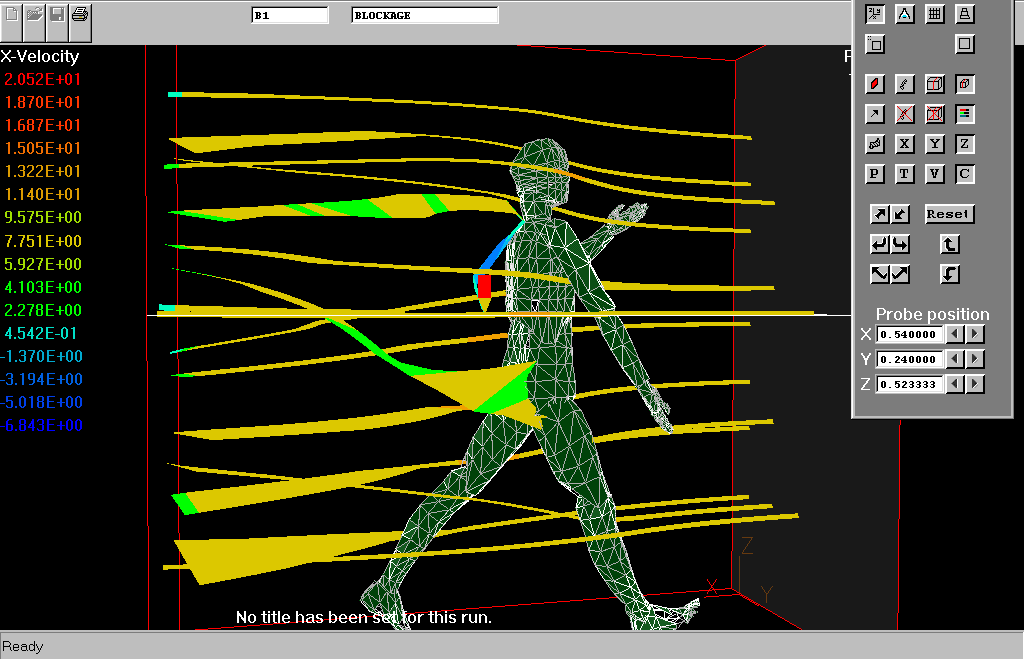

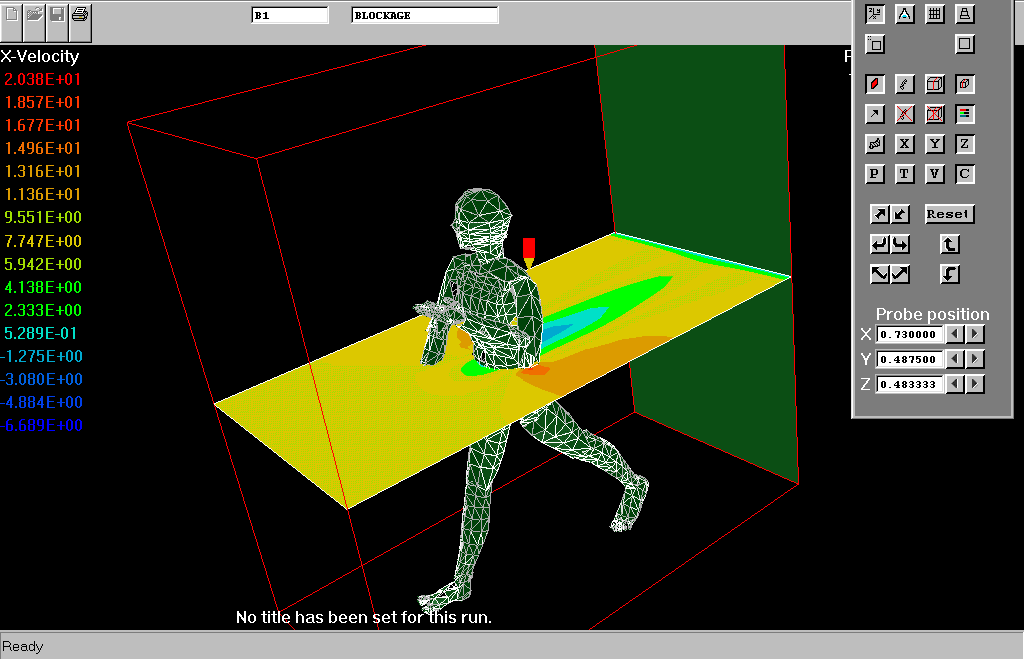

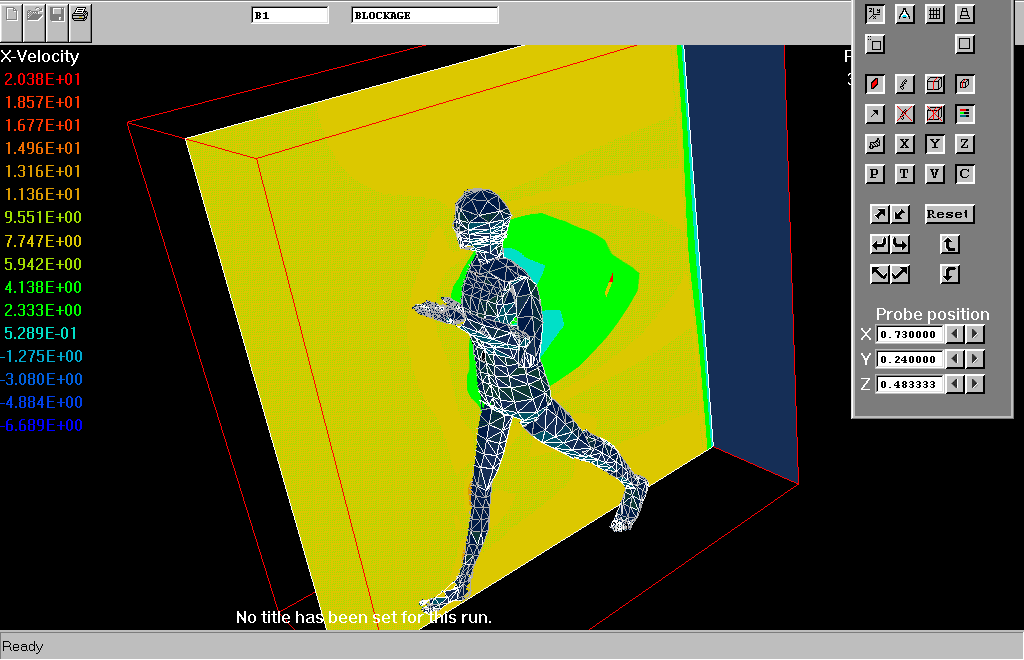

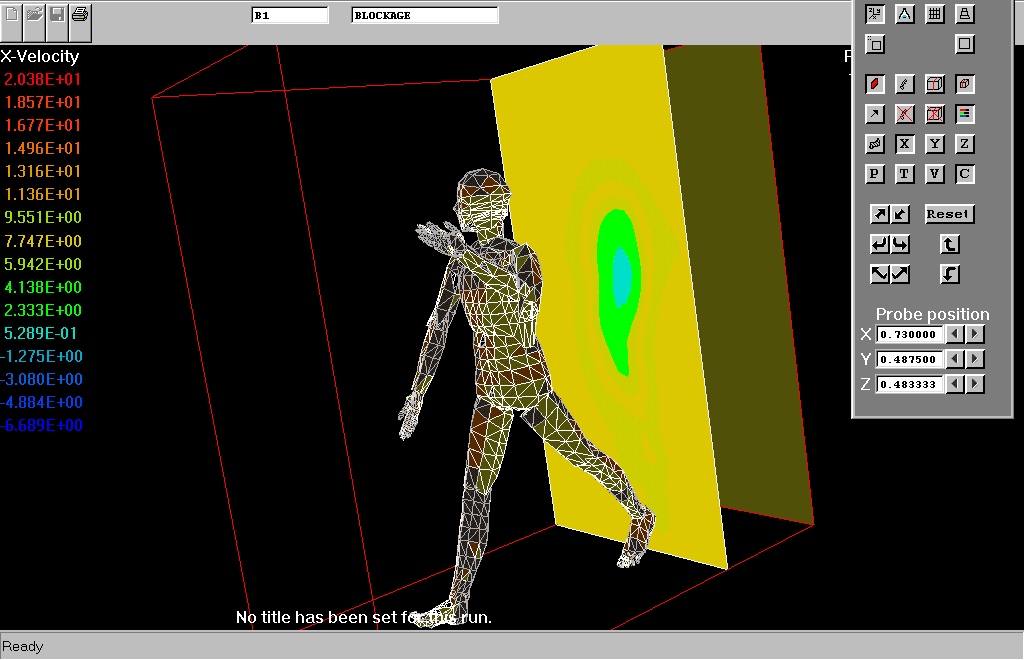

TALK=T;RUN( 1, 1) DISPLAY This Q1 provides the input to PHOENICS which sets up a calculation of the quasi-steady flow around a walking man, represented by way of facets. The LVEL model of turbulence and PARSOL are used. The following pictures display some of the results: streamlines around the man1. longitudinal component behind the man,velocity contours, showing how the man's presence causes a wake of lowered-velocity air:

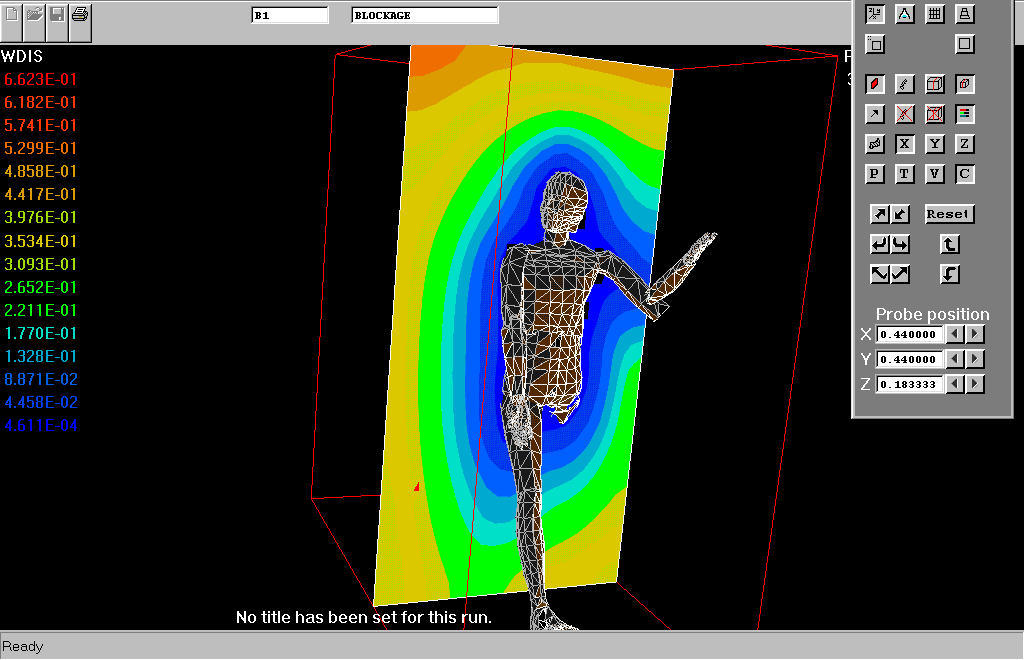

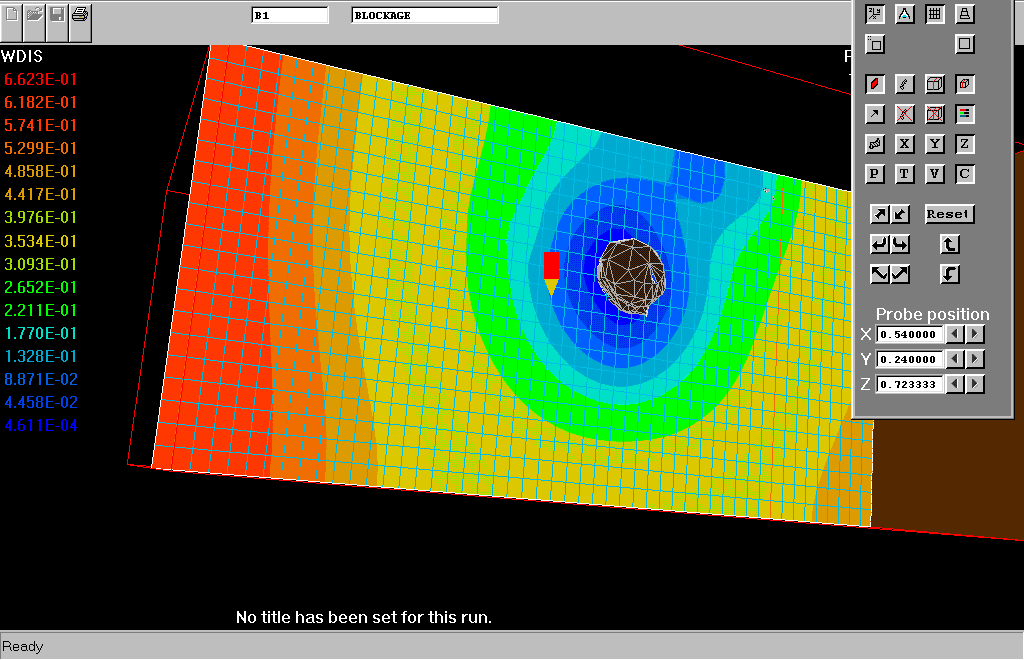

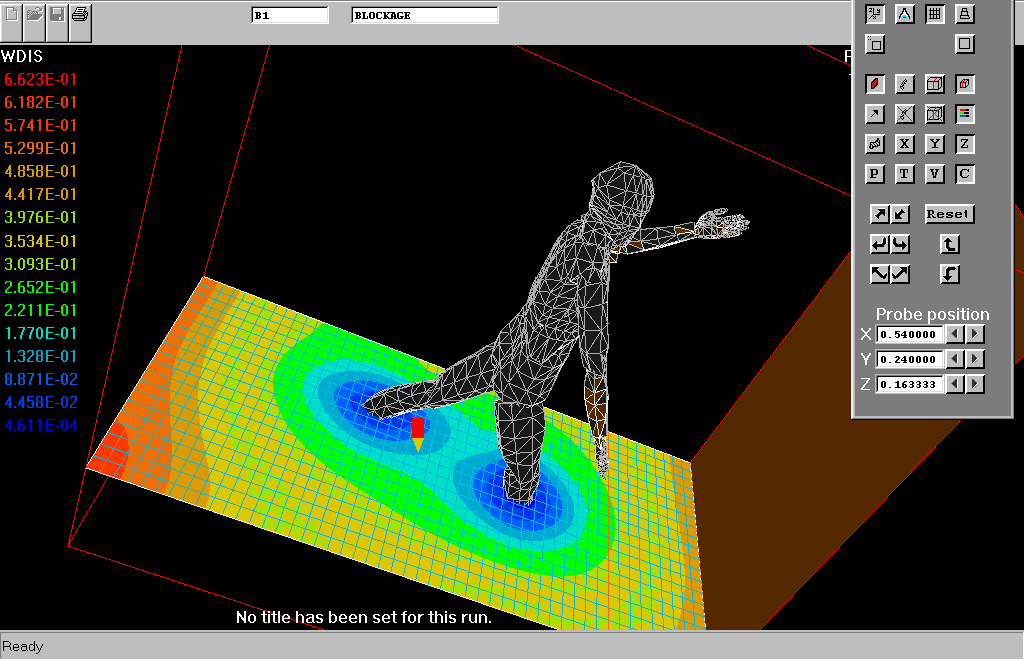

Various representations of the distance from the man's surface, used
for the calculation of turbulence:
1.
2.
3.

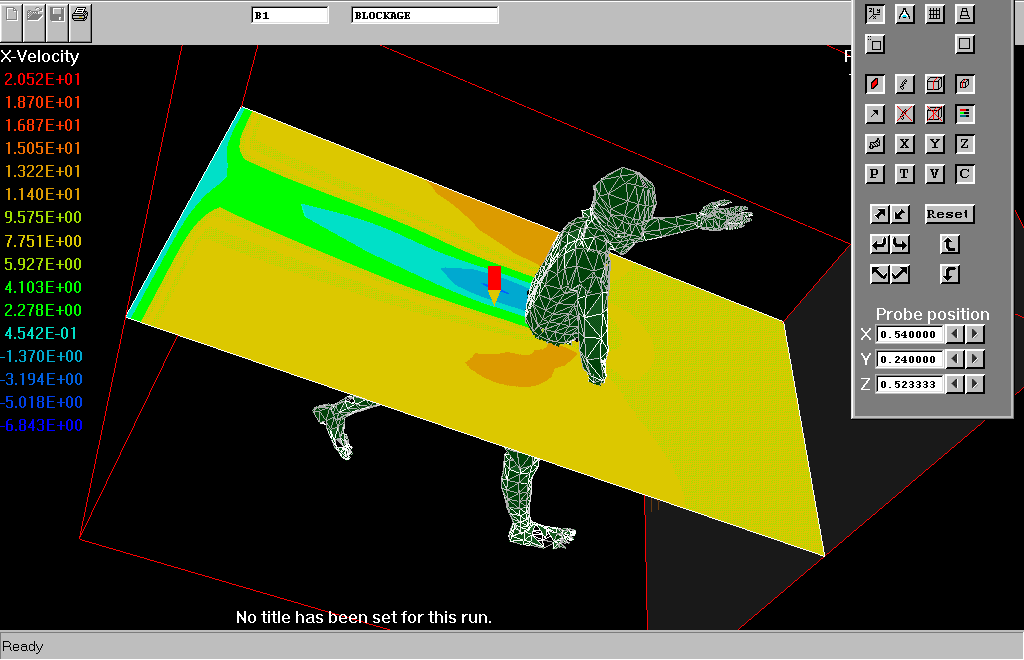

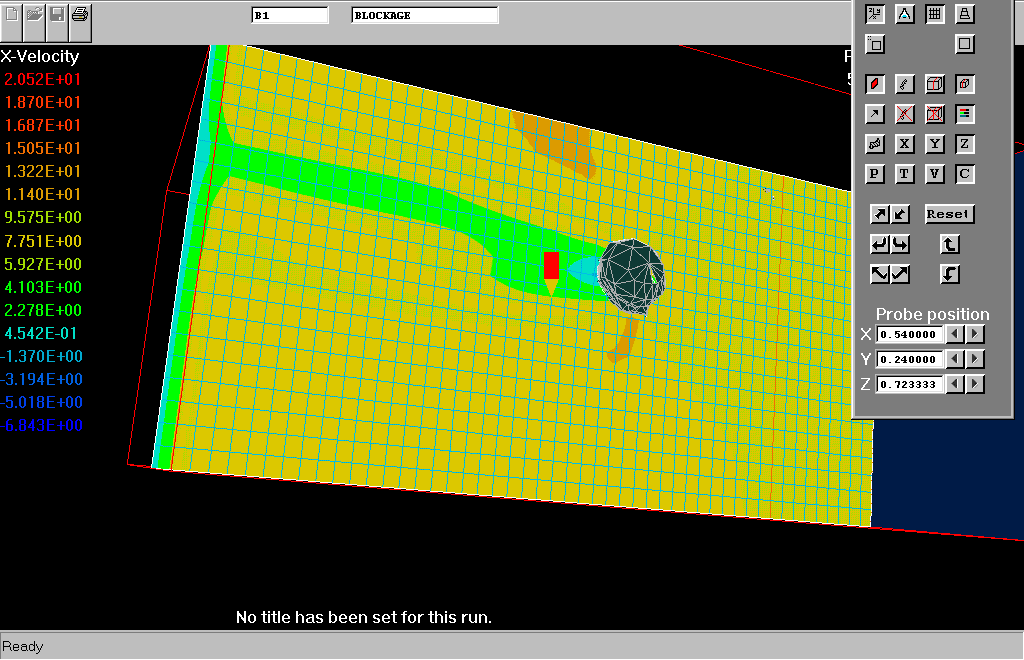

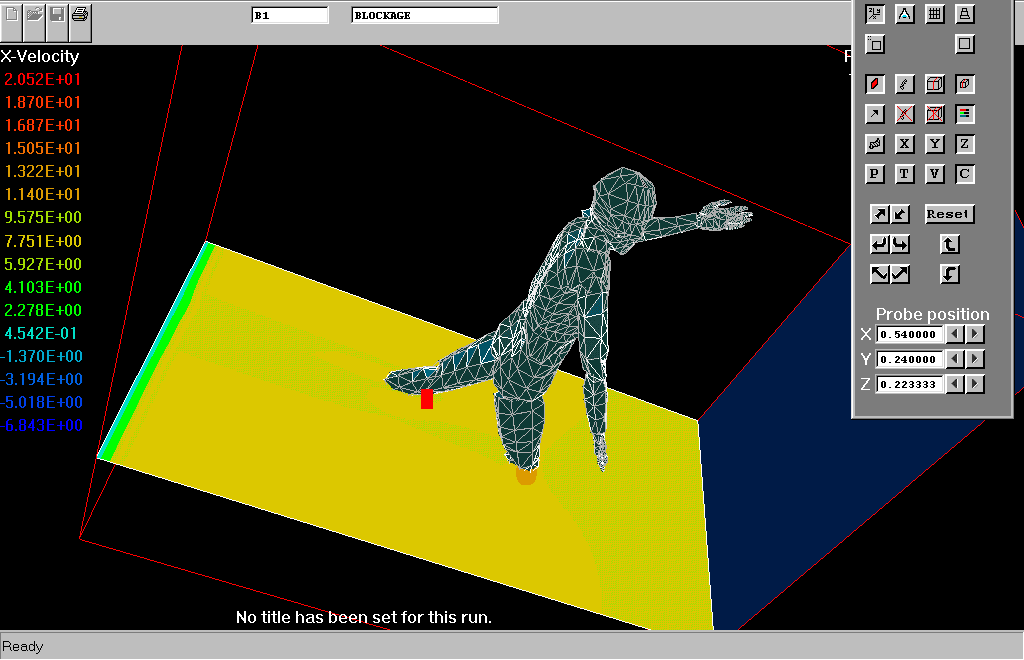

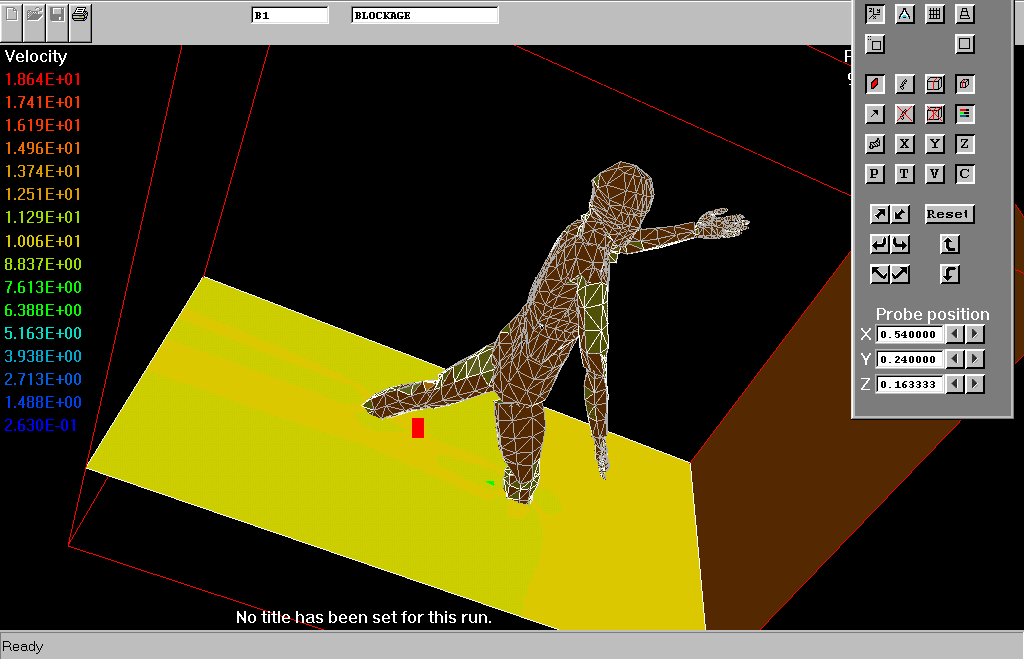

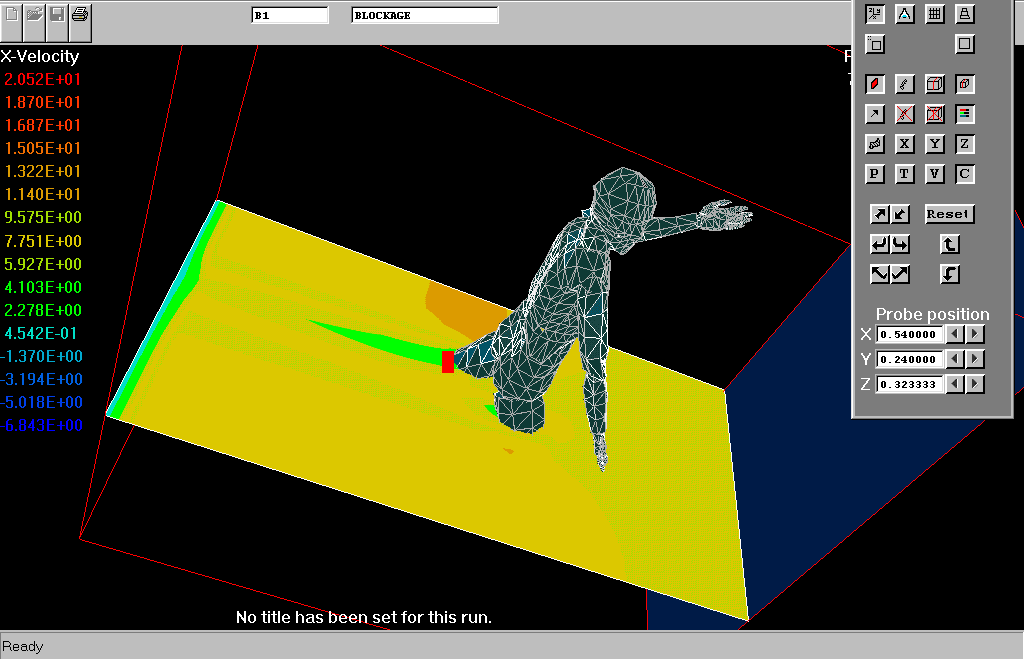

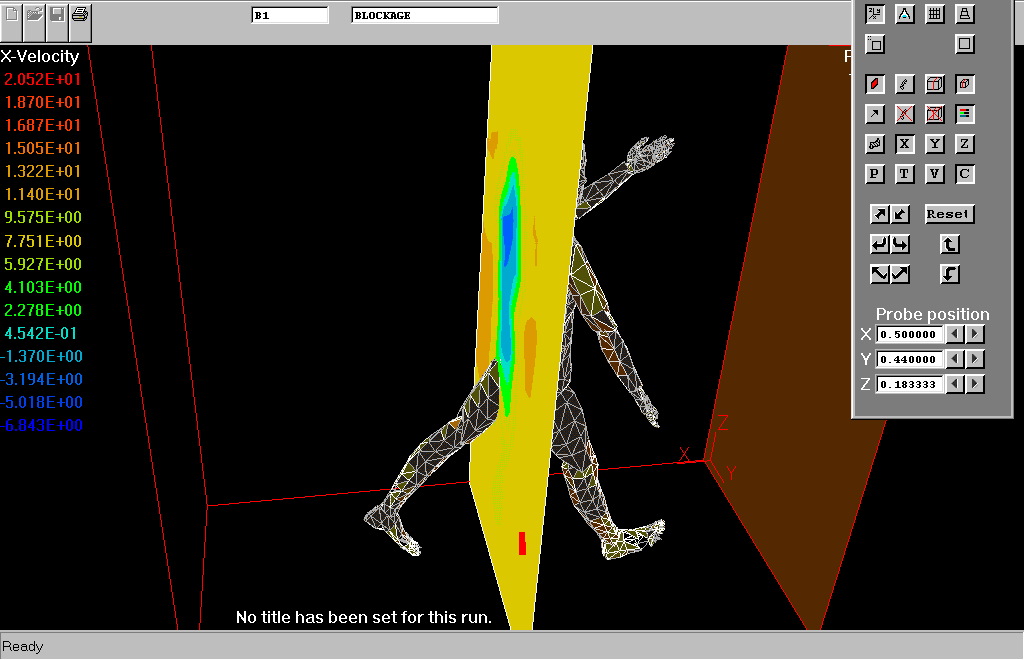

Various other velocity contour diagrams from a similar laminar-flow
calculation:
1.
2.
3.
4.
5.
6.
ENDDIS
************************************************************
Q1 created by VDI menu, Version 3.3, Date 20/12/00
CPVNAM=VDI;SPPNAM=Core
************************************************************
IRUNN = 1 ;LIBREF = 0
************************************************************
Group 1. Run Title
TEXT(Walking Man)
************************************************************
Group 2. Transience
STEADY = T
************************************************************
Groups 3, 4, 5 Grid Information
* Overall number of cells, RSET(M,NX,NY,NZ,tolerance)
RSET(M,50,20,30)
* Set overall domain extent:
* xulast yvlast zwlast
name
XSI= 1.000000E+00; YSI= 5.000000E-01; ZSI= 1.000000E+00
RSET(D,CHAM )
************************************************************
Group 6. Body-Fitted coordinates
************************************************************
Group 7. Variables: STOREd,SOLVEd,NAMEd
ONEPHS = T
* Non-default variable names
NAME(149) =WDIS ; NAME(150) =PRPS
* Solved variables list
SOLVE(P1 ,U1 ,V1 ,W1 )
* Stored variables list
STORE(PRPS,WDIS)
* Additional solver options
SOLUTN(P1 ,Y,Y,Y,N,N,Y)
TURMOD(LVEL)
************************************************************
Group 8. Terms & Devices
************************************************************
Group 9. Properties
SETPRPS(1, 0)
RHO1 = 1.189000E+00
PRESS0 = 1.000000E+05
TEMP0 = 2.730000E+02
CP1 = 1.005000E+03
ENUL = 1.544000E-05
DVO1DT = 3.410000E-03
************************************************************
Group 10.Inter-Phase Transfer Processes
************************************************************
Group 11.Initialise Var/Porosity Fields
FIINIT(U1 ) = 1.000000E+01 ;FIINIT(WDIS) = 5.000000E-02
No PATCHes used for this Group
INIADD = F
************************************************************
Group 12. Convection and diffusion adjustments
No PATCHes used for this Group
************************************************************
Group 13. Boundary & Special Sources
No PATCHes used for this Group
EGWF = T
************************************************************
Group 14. Downstream Pressure For PARAB
************************************************************
Group 15. Terminate Sweeps
LSWEEP = 100
RESFAC = 1.000000E-03
************************************************************
Group 16. Terminate Iterations
************************************************************
Group 17. Relaxation
RELAX(P1 ,LINRLX, 5.000000E-01)
RELAX(U1 ,FALSDT, 1.000000E-01)
RELAX(V1 ,FALSDT, 1.000000E-02)
RELAX(W1 ,FALSDT, 1.000000E-02)
************************************************************
Group 18. Limits
VARMAX(U1 ) = 1.000000E+06 ;VARMIN(U1 ) =-1.000000E+06
VARMAX(V1 ) = 1.000000E+06 ;VARMIN(V1 ) =-1.000000E+06
VARMAX(W1 ) = 1.000000E+06 ;VARMIN(W1 ) =-1.000000E+06
************************************************************
Group 19. EARTH Calls To GROUND Station
USEGRD = T ;USEGRX = T
ASAP = T
PARSOL = T
RADIA = 0.000000E+00 ;RADIB = 0.000000E+00
************************************************************
Group 20. Preliminary Printout
ECHO = T
************************************************************
Group 21. Print-out of Variables
OUTPUT(P1 ,Y,Y,Y,N,Y,Y)
OUTPUT(U1 ,Y,Y,Y,N,Y,Y)
OUTPUT(V1 ,Y,Y,Y,N,Y,Y)
OUTPUT(W1 ,Y,Y,Y,N,Y,Y)
OUTPUT(WDIS,Y,N,N,N,N,N)
************************************************************
Group 22. Monitor Print-Out
IXMON = 25 ;IYMON = 20 ;IZMON = 15
NPRMON = 100000
NPRMNT = 1
TSTSWP = -1
************************************************************
Group 23.Field Print-Out & Plot Control
NPRINT = 100000
ISWPRF = 1 ;ISWPRL = 100000
No PATCHes used for this Group
************************************************************
Group 24. Dumps For Restarts
NOWIPE = T
GVIEW(P,-9.031108E-01,3.930684E-01,1.728833E-01)
GVIEW(UP,1.930231E-01,1.196184E-02,9.811214E-01)
> DOM, SIZE, 1.000000E+00, 5.000000E-01, 1.000000E+00
> DOM, MONIT, 4.900000E-01, 4.875000E-01, 4.833330E-01
> DOM, SCALE, 1.000000E+00, 1.000000E+00, 1.000000E+00
> DOM, SNAPSIZE, 1.000000E-02
> DOM, RELAX, 5.000000E-01
> OBJ1, NAME, B1
> OBJ1, POSITION, 1.800000E-01, 0.000000E+00, 0.000000E+00
> OBJ1, SIZE, 8.000000E-01, 8.000000E-01, 8.000000E-01
> OBJ1, CLIPART, man2
> OBJ1, ROTATION24, 1
> OBJ1, TYPE, BLOCKAGE
> OBJ1, MATERIAL, 198
> OBJ2, NAME, B2
> OBJ2, POSITION, 0.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ2, SIZE, 0.000000E+00, 5.000000E-01, 1.000000E+00
> OBJ2, CLIPART, cube3t
> OBJ2, ROTATION24, 1
> OBJ2, TYPE, INLET
> OBJ2, PRESSURE, 0.000000E+00
> OBJ2, VELOCITY, 1.000000E+01, 0.000000E+00, 0.000000E+00
> OBJ2, TEMPERATURE, 0.000000E+00
> OBJ3, NAME, B3
> OBJ3, POSITION, 1.000000E+00, 0.000000E+00, 0.000000E+00
> OBJ3, SIZE, 0.000000E+00, 5.000000E-01, 1.000000E+00
> OBJ3, CLIPART, cube12t
> OBJ3, ROTATION24, 1
> OBJ3, TYPE, OUTLET
> OBJ3, PRESSURE, 0.000000E+00
> OBJ3, TEMPERATURE, -1.026000E+04
> OBJ3, COEFFICIENT, 1.000000E+03
STOP
distil=t
EX(P1 )= 9.422E+00
EX(U1 )= 1.008E+01
EX(V1 )= 3.818E-01
EX(W1 )= 4.053E-01
EX(LTLS)= 7.540E-08
EX(WDIS)= 3.826E-04
EX(PRPS)= 2.497E+00
